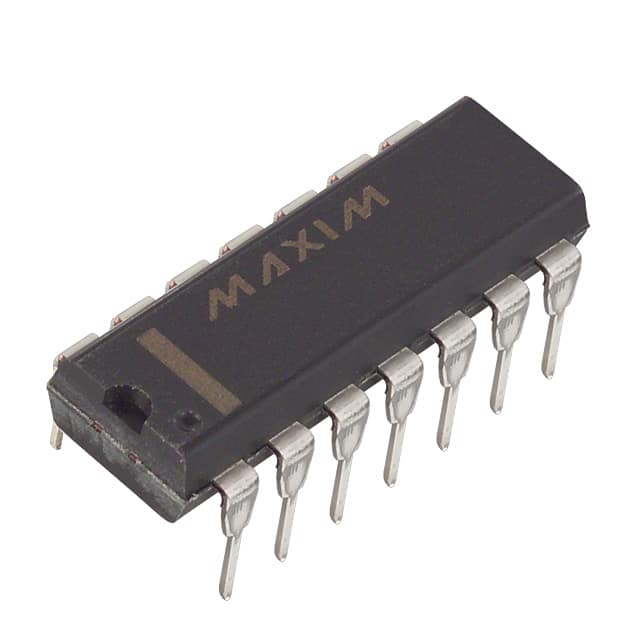

DS1801+
IC DGTL POT 45KOHM 65TAP 14DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital Potentiometers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DS1801- is a dual-channel digital potentiometer offering 65 discrete tap positions per channel. This device features a total resistance of 45k Ohms with a typical wiper resistance of 400 Ohms. Its logarithmic taper is suitable for a variety of control applications. The DS1801- communicates via a serial interface and operates within a voltage range of 2.7V to 5.5V. Key features include cascade pin functionality for extending resolution, mute capability, and zero-cross sensing. The component is packaged in a 14-PDIP (0.300", 7.62mm) through-hole mount and operates across an industrial temperature range of -40°C to 85°C. This device finds application in industrial automation, audio processing, and power supply control systems. Tolerance is ±20% with a temperature coefficient of 750ppm/°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Last Time BuyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 45k |
| Tolerance | ±20% |
| Features | Cascade Pin, Mute, Zero-Cross Sense |
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Memory Type | Volatile |
| Interface | Serial |
| Configuration | Potentiometer |
| Operating Temperature | -40°C ~ 85°C |
| Number of Taps | 65 |
| Voltage - Supply | 2.7V ~ 5.5V |
| Taper | Logarithmic |
| Supplier Device Package | 14-PDIP |
| Resistance - Wiper (Ohms) (Typ) | 400 |
| Temperature Coefficient (Typ) | 750ppm/°C |
| Number of Circuits | 2 |
| Programmable | Not Verified |
