DS1110LE-500+T&R
IC DELAY LN 10TAP 500NS 14TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Delay Lines
Quality Control: Learn More

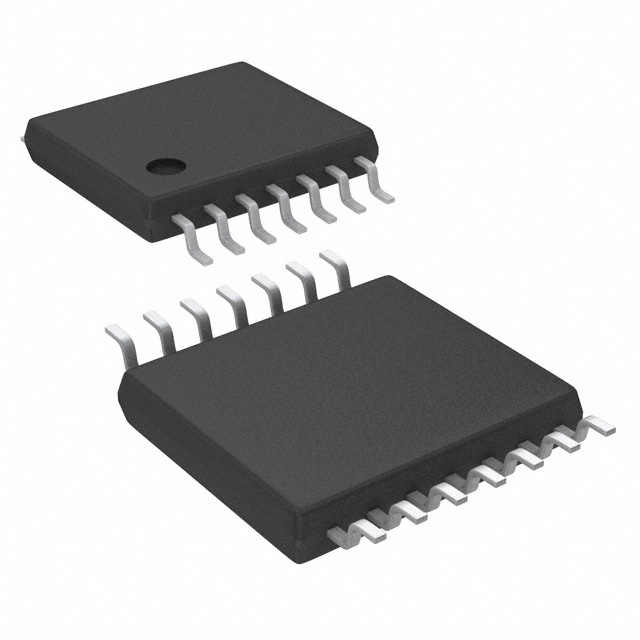

The Analog Devices Inc./Maxim Integrated DS1110LE-500-T-R is a nonprogrammable delay line integrated circuit. This component features 10 taps, providing discrete delay increments of 50 ns. The total available delay is 500 ns, with the delay to the first tap at 50 ns. Designed for surface mounting, it utilizes a 14-TSSOP package with a standard width of 0.173 inches (4.40mm). Operating within a supply voltage range of 2.7V to 3.6V and an industrial temperature range of -40°C to 85°C, this device is suitable for applications requiring precise signal timing. Its capabilities make it relevant for use in telecommunications infrastructure and industrial control systems. This part is supplied in a tape and reel package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Function | Nonprogrammable |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.7V ~ 3.6V |
| Number of Taps/Steps | 10 |
| Delay to 1st Tap | 50ns |
| Number of Independent Delays | 1 |
| Available Total Delays | 500ns |
| Tap Increment | 50 ns |
| Supplier Device Package | 14-TSSOP |
