DS1100U-75+

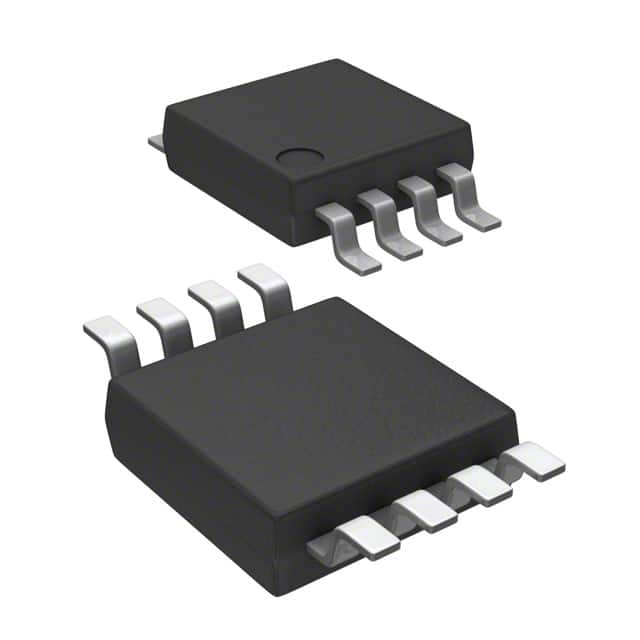

IC DELAY LINE 5TAP 75NS 8UMAXManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Delay Lines
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DS1100U-75- is a nonprogrammable delay line IC featuring 5 taps, with a total delay of 75ns. The tap increment is 15ns, with the delay to the first tap also at 15ns. This component is designed for surface mount applications and operates within a voltage supply range of 4.75V to 5.25V. The package configuration is 8-uMAX/uSOP, compatible with 8-TSSOP and 8-MSOP (0.118", 3.00mm Width) footprints. It is rated for an operating temperature range of -40°C to 85°C. This electronic component is suitable for use in various industrial and consumer electronics applications requiring precise signal timing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Function | Nonprogrammable |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Number of Taps/Steps | 5 |
| Delay to 1st Tap | 15ns |
| Number of Independent Delays | 1 |
| Available Total Delays | 75ns |
| Tap Increment | 15 ns |
| Supplier Device Package | 8-uMAX/uSOP |
