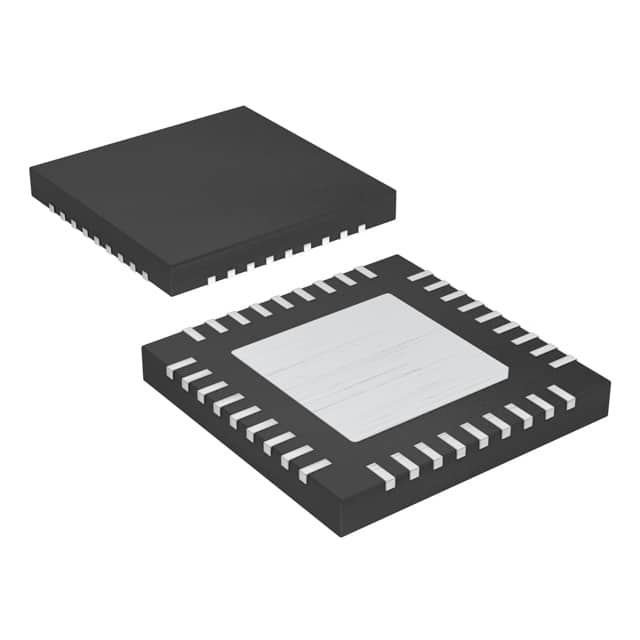

MAX8654ETX+T
IC REG BUCK ADJ 8A 36TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX8654ETX-T is a high-performance, adjustable output buck switching regulator. This component delivers a continuous 8A output current with a wide input voltage range of 4.5V to 14V. The output voltage is adjustable from 0.6V to 11.9V, providing flexibility for various power supply designs. Featuring a switching frequency that can be set between 250kHz and 1.2MHz, the MAX8654ETX-T offers a balance between efficiency and component size. Its 36-WFQFN exposed pad package ensures excellent thermal performance for demanding applications. This device is suitable for use in high-power DC-DC conversion applications across industries such as industrial automation, telecommunications, and automotive systems. The regulator is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-WFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 8A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 250kHz ~ 1.2MHz |
| Voltage - Input (Max) | 14V |
| Topology | Buck |
| Supplier Device Package | 36-TQFN (6x6) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 11.9V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
Request a Quote
