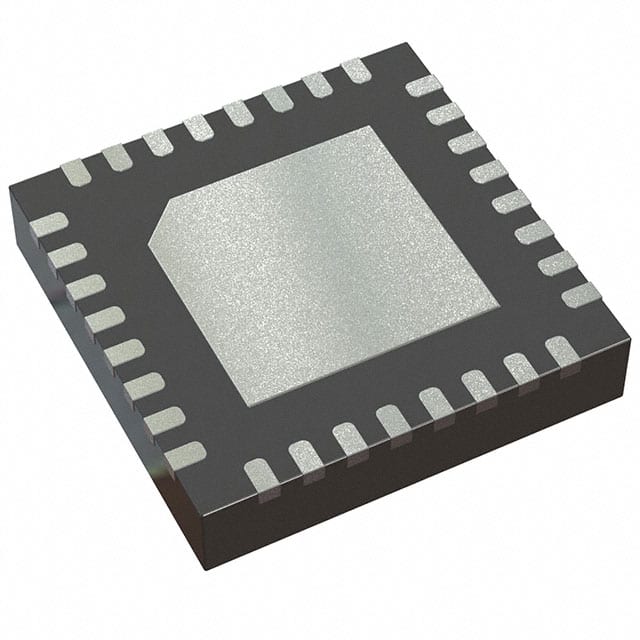

MAX8566ETJ+T
IC REG BUCK ADJ 10A 32TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX8566ETJ-T is a high-performance, adjustable output buck switching regulator. This device offers a single positive output with an adjustable voltage range from 0.6V to 3.13V, capable of delivering up to 10A of output current. Operating with an input voltage range of 2.3V to 3.6V, it features a wide switching frequency from 250kHz to 4.2MHz, allowing for flexible design choices. The MAX8566ETJ-T incorporates a synchronous rectifier for improved efficiency and is housed in a compact 32-TQFN (5x5) package with an exposed pad for enhanced thermal management. Its robust design makes it suitable for demanding applications in the automotive and industrial sectors. The component is supplied in a Tape & Reel (TR) package for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-WFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 10A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 250kHz ~ 4.2MHz |
| Voltage - Input (Max) | 3.6V |
| Topology | Buck |
| Supplier Device Package | 32-TQFN (5x5) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 3.13V |
| Voltage - Input (Min) | 2.3V |
| Voltage - Output (Min/Fixed) | 0.6V |
