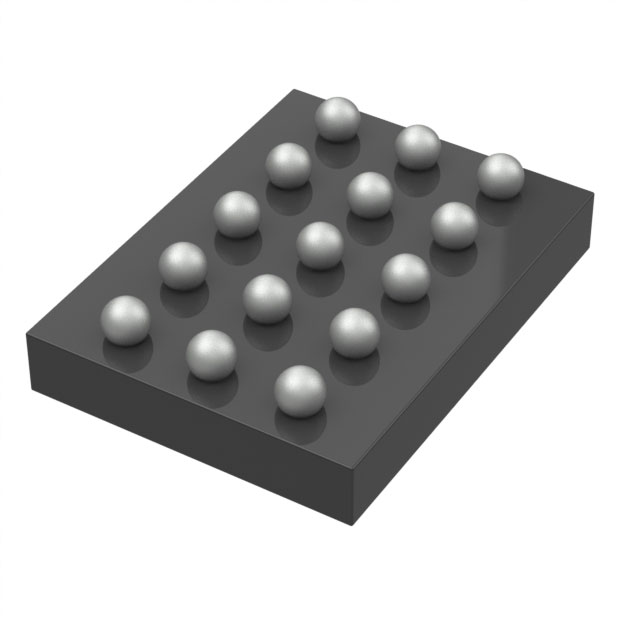

MAX77839DEWL+T
IC REG BUCK BOOST ADJ 3A 15WLPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX77839DEWL-T is a highly efficient, adjustable buck-boost switching regulator. This device offers a flexible output voltage, adjustable from 2.3V up to 5.3V, with a maximum output current of 3A. Operating with an input voltage range of 1.8V to 5.5V, it features a 2.2MHz switching frequency, minimizing external component size. The MAX77839DEWL-T utilizes a buck-boost topology and is housed in a compact 15-WLP (2.07x1.51) package, suitable for surface mount applications. It is designed for a wide operating temperature range of -40°C to 125°C (TJ). This component finds application in portable electronics, power management solutions, and other battery-powered devices requiring versatile voltage conversion.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 15-WFBGA, WLBGA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 2.2MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck-Boost |
| Supplier Device Package | 15-WLP (2.07x1.51) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 5.3V |
| Voltage - Input (Min) | 1.8V |
| Voltage - Output (Min/Fixed) | 2.3V |
