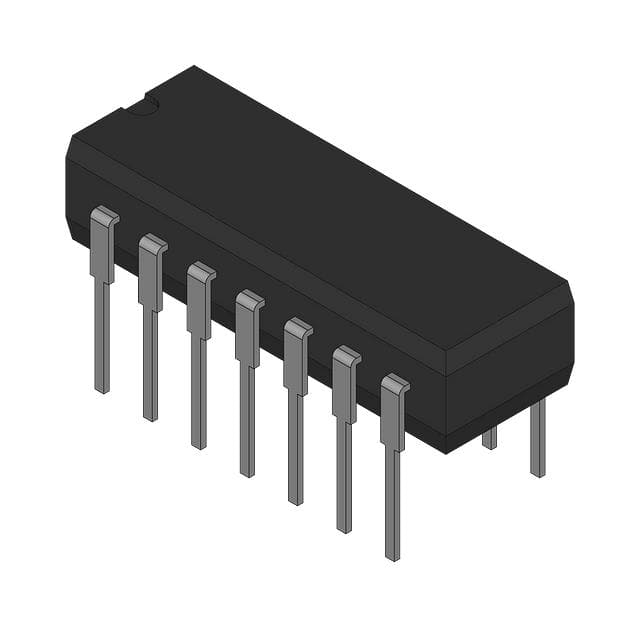

productimage

MAX759EPD

IC REG BUCK ADJ 500MA 14DIP

Manufacturer: Analog Devices Inc./Maxim Integrated

Categories: DC DC Switching Regulators

Quality Control: Learn More

Buck Switching Regulator IC Negative Adjustable 0V 1 Output 500mA 14-DIP (0.300"", 7.62mm)

Additional Information

Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:
Download Free CAD Model:Link image
Technical Details:
PackagingBulk
Package / Case14-DIP (0.300"", 7.62mm)
Output TypeAdjustable
Mounting TypeThrough Hole
Number of Outputs1
FunctionStep-Down
Current - Output500mA
Operating Temperature-40°C ~ 85°C (TA)
Output ConfigurationNegative
Frequency - Switching185kHz
Voltage - Input (Max)11V
TopologyBuck
Supplier Device Package14-PDIP
Synchronous RectifierNo
Voltage - Output (Max)-15V
Voltage - Input (Min)4V
Voltage - Output (Min/Fixed)0V
