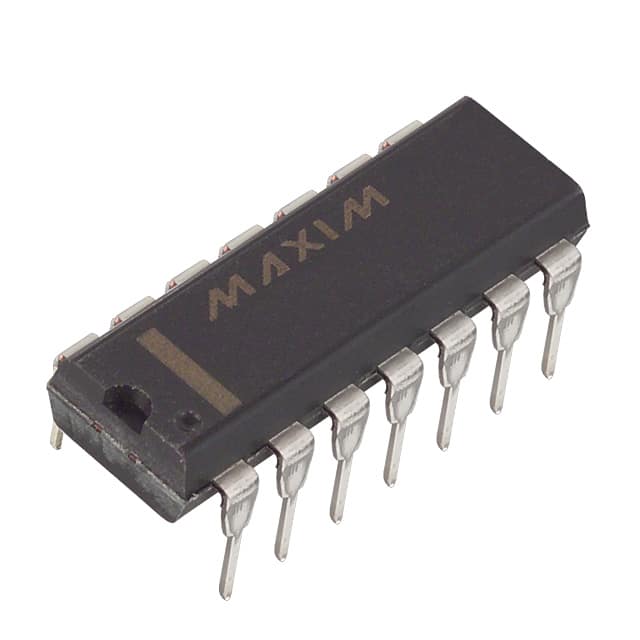

MAX737CPD+
IC REG BUCK-BST -15V 110MA 14DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck-Boost Switching Regulator IC Negative Fixed -15V 1 Output 110mA 14-DIP (0.300"", 7.62mm)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Function | Step-Up |
| Current - Output | 110mA |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Output Configuration | Negative |
| Frequency - Switching | 185kHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck-Boost |
| Supplier Device Package | 14-PDIP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 4V |
| Voltage - Output (Min/Fixed) | -15V |
