MAX736CPD+

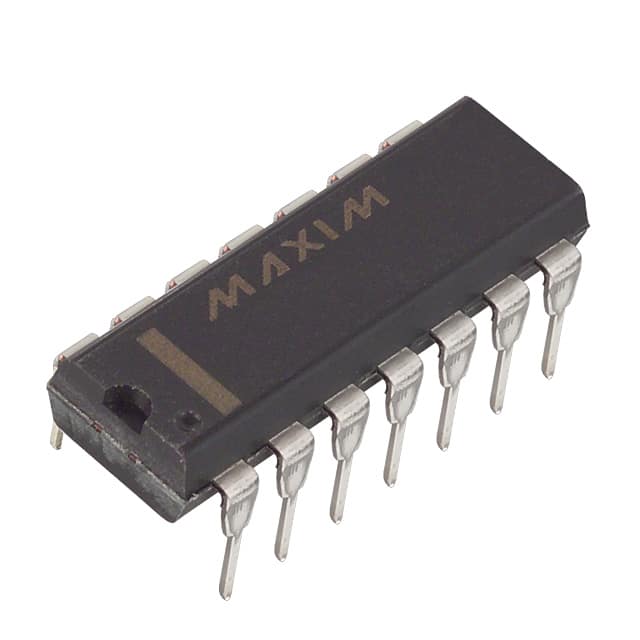

IC REG BUCK-BST -12V 140MA 14DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX736CPD- is a buck-boost switching regulator IC designed for generating a fixed -12V output at 140mA. This device operates with an input voltage range of 4V to 8.6V, featuring a switching frequency of 185kHz. The MAX736CPD- utilizes a buck-boost topology, offering efficient conversion for applications requiring a negative voltage rail. It is packaged in a 14-DIP (0.300", 7.62mm) through-hole component, supplied in tube packaging. This component is commonly found in industrial and consumer electronics where precise negative voltage regulation is critical. The device does not incorporate a synchronous rectifier.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Function | Step-Up |
| Current - Output | 140mA |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Output Configuration | Negative |
| Frequency - Switching | 185kHz |
| Voltage - Input (Max) | 8.6V |
| Topology | Buck-Boost |
| Supplier Device Package | 14-PDIP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 4V |
| Voltage - Output (Min/Fixed) | -12V |
