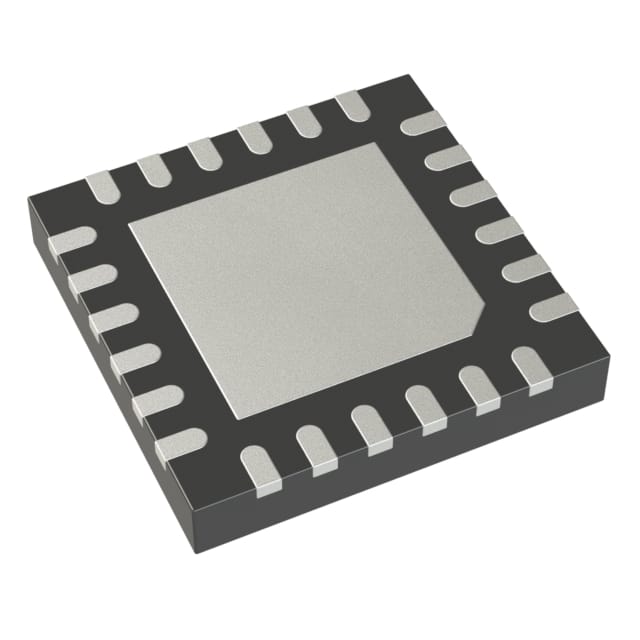

MAX685ETG+
IC REG BOOST ADJ 440MA DL 24TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Boost Switching Regulator IC Positive and Negative (Dual Rail) Adjustable -1.27V, 2.7V 2 Output 440mA (Switch) 24-WFQFN Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-WFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Up |
| Current - Output | 440mA (Switch) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive and Negative (Dual Rail) |
| Frequency - Switching | 220kHz, 400kHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Boost |
| Supplier Device Package | 24-TQFN (4x4) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 24V, -9V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | -1.27V, 2.7V |
