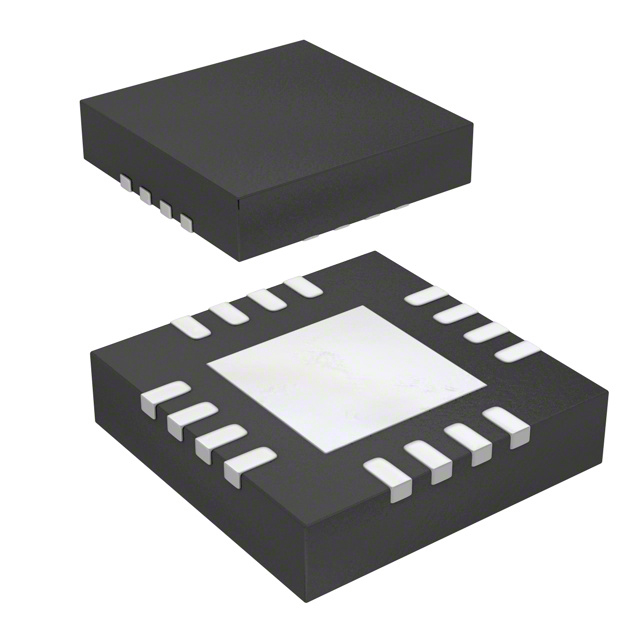

MAX5090BATE+T
IC REG BUCK 5V 2A 16TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX5090BATE-T is a step-down switching regulator IC designed for efficient power conversion. This fixed 5V output device delivers up to 2A of current from an input voltage range of 6.5V to 76V. Featuring a 127kHz switching frequency, it employs a buck topology without a synchronous rectifier, housed in a 16-TQFN (5x5) exposed pad package. The MAX5090BATE-T is suitable for surface mount applications and operates across a wide temperature range of -40°C to 125°C (TJ). This component finds application in industrial, automotive, and telecommunications sectors requiring robust and stable voltage regulation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 127kHz |
| Voltage - Input (Max) | 76V |
| Topology | Buck |
| Supplier Device Package | 16-TQFN (5x5) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 6.5V |
| Voltage - Output (Min/Fixed) | 5V |
