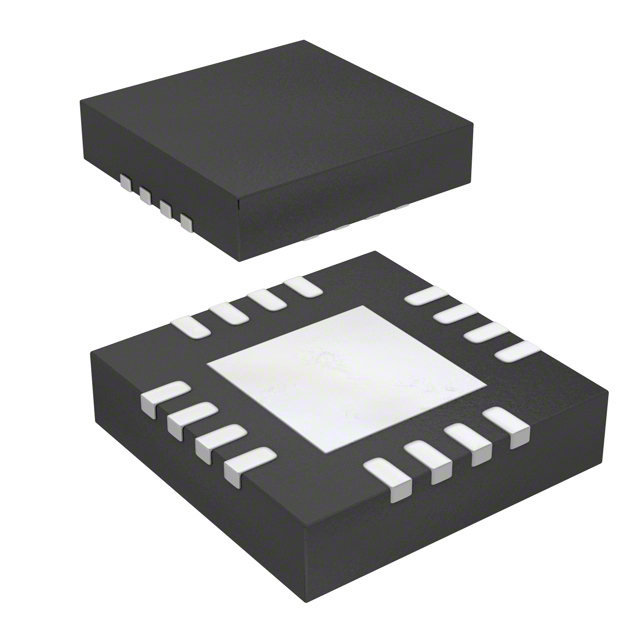

MAX5090AATE+T
IC REG BUCK 3.3V 2A 16TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX5090AATE-T is a high-efficiency, fixed 3.3V buck switching regulator. This device is designed for step-down voltage conversion, offering a stable 2A output current. Operating with an input voltage range of 6.5V to 76V, it features a switching frequency of 127kHz. The regulator employs a non-synchronous buck topology and is housed in a 16-TQFN (5x5) package with an exposed pad for enhanced thermal performance. Its fixed output configuration and positive output type make it suitable for applications requiring precise voltage regulation. The MAX5090AATE-T is engineered for operation across a wide temperature range of -40°C to 125°C (TJ) and is supplied in tape and reel packaging. This component finds application in industrial, automotive, and telecommunications power management systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 127kHz |
| Voltage - Input (Max) | 76V |
| Topology | Buck |
| Supplier Device Package | 16-TQFN (5x5) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 6.5V |
| Voltage - Output (Min/Fixed) | 3.3V |
