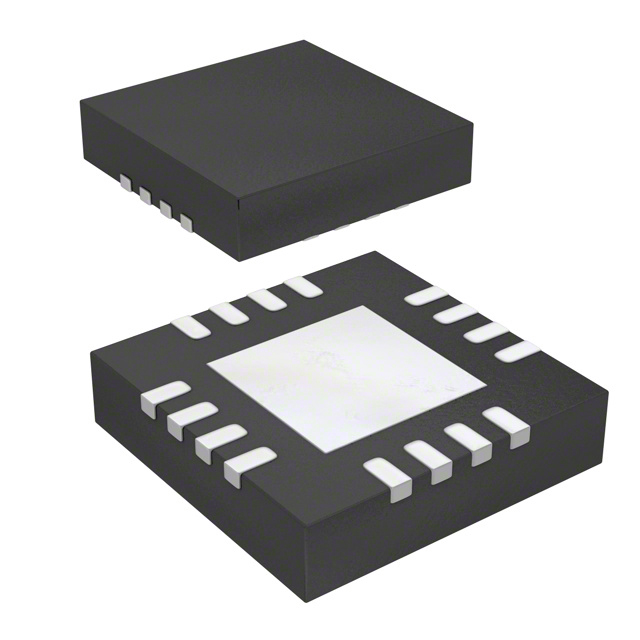

MAX5088ATE+
IC REG BUCK ADJ 2A 16TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX5088ATE- is a highly efficient buck switching regulator IC designed for demanding power conversion applications. This positive, adjustable output device offers a 2A output current capability with an output voltage range from 0.6V up to 20.13V. Operating with an input voltage range of 4.5V to 23V, the MAX5088ATE- utilizes a step-down topology. Its selectable switching frequency, ranging from 200kHz to 2.2MHz, allows for optimization between efficiency and component size. The device features a 16-TQFN (5x5) package with an exposed pad for enhanced thermal performance, suitable for surface mount installations. This component is commonly employed in industrial, automotive, and communications infrastructure power systems. The MAX5088ATE- operates across a temperature range of -40°C to 125°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-WQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz ~ 2.2MHz |
| Voltage - Input (Max) | 23V |
| Topology | Buck |
| Supplier Device Package | 16-TQFN (5x5) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 20.13V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
