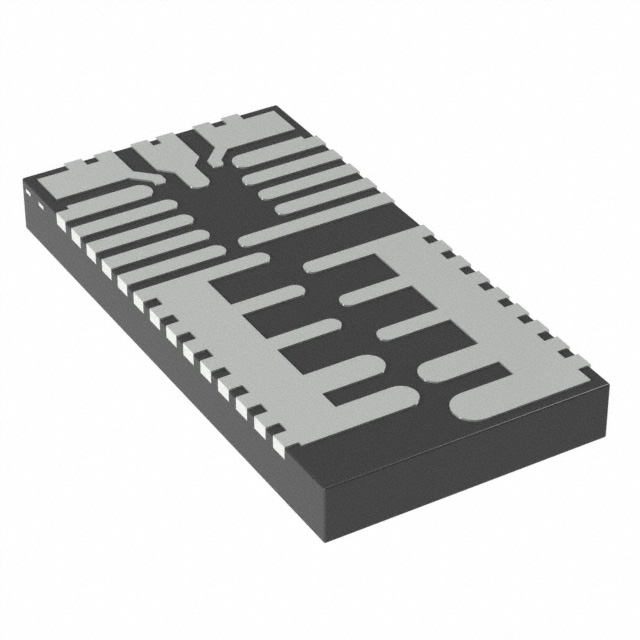

MAX20735EPL+T
IC REG BUCK ADJ 40A 15FCQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX20735EPL-T is a high-current adjustable step-down switching regulator designed for demanding applications. This component delivers up to 40A of output current, supporting an adjustable output voltage range from 0.65V to 5.5V, with a maximum input voltage of 16V and a minimum of 4.5V. Its switching frequency is selectable between 400kHz and 900kHz, offering flexibility in design trade-offs.
The MAX20735EPL-T features a single positive output configuration and operates efficiently across a junction temperature range of -40°C to 125°C. Housed in a 15-VFQFN, FCQFN package, this surface-mount device is supplied in a Tape & Reel (TR) format. Its buck topology and non-synchronous rectification make it suitable for power supply systems in industrial, automotive, and data center equipment where precise voltage regulation and high power density are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 15-VFQFN, FCQFN |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 40A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 400kHz ~ 900kHz |
| Voltage - Input (Max) | 16V |
| Topology | Buck |
| Supplier Device Package | 15-FCQFN (9x4.15) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 0.65V |
