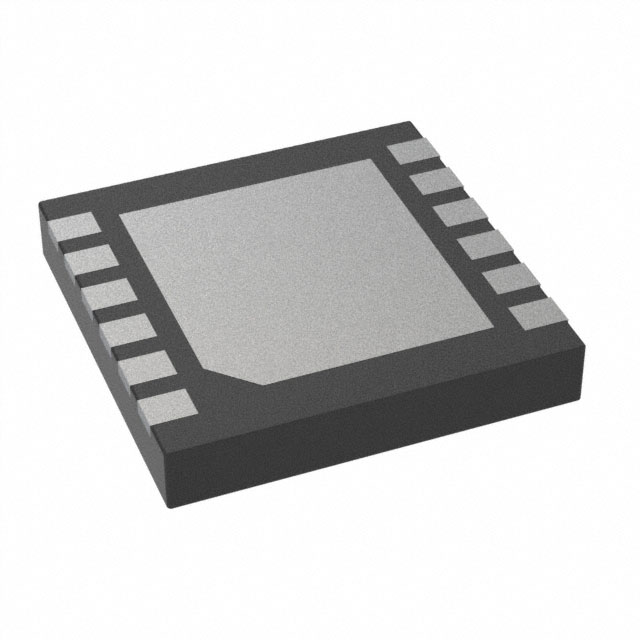

MAX20059ATCA/VY+
IC REG BUCK ADJUSTABLE 12TDFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 12-WFDFN Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 12-WFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount, Wettable Flank |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz ~ 2.033MHz |
| Voltage - Input (Max) | 72V |
| Topology | Buck |
| Supplier Device Package | 12-TDFN-EP (3x3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 64.8V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
