MAX20040CATPA/VY+
IC REG BUCK-BST PROG 1.2A 20TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX20040CATPA-VY- is a highly efficient, synchronous buck-boost switching regulator designed for automotive applications. This single-output device delivers up to 1.2A and operates with a programmable (fixed) output voltage. Featuring a 2.2MHz switching frequency, it utilizes a buck-boost topology to provide a positive output from a wide input voltage range of 2V to 36V, with a maximum output voltage of 15V. The MAX20040CATPA-VY- is AEC-Q100 qualified and operates within an ambient temperature range of -40°C to 125°C. Supplied in a 20-TQFN-EP (4x4) package suitable for surface mount with wettable flanks, this component is ideal for automotive power management systems, including infotainment, ADAS, and body electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |

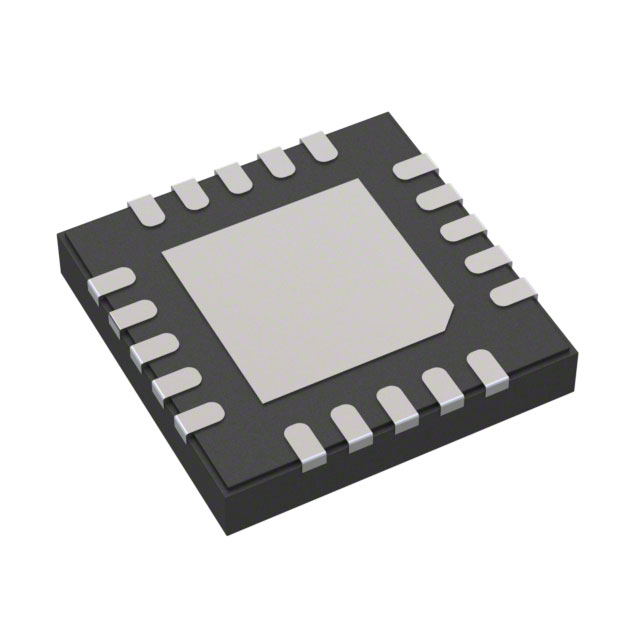

| Package / Case | 20-WFQFN Exposed Pad |
| Output Type | Programmable (Fixed) |
| Mounting Type | Surface Mount, Wettable Flank |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 1.2A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Frequency - Switching | 2.2MHz |
| Voltage - Input (Max) | 36V |
| Topology | Buck-Boost |
| Supplier Device Package | 20-TQFN-EP (4x4) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 15V |
| Voltage - Input (Min) | 2V |
| Voltage - Output (Min/Fixed) | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
