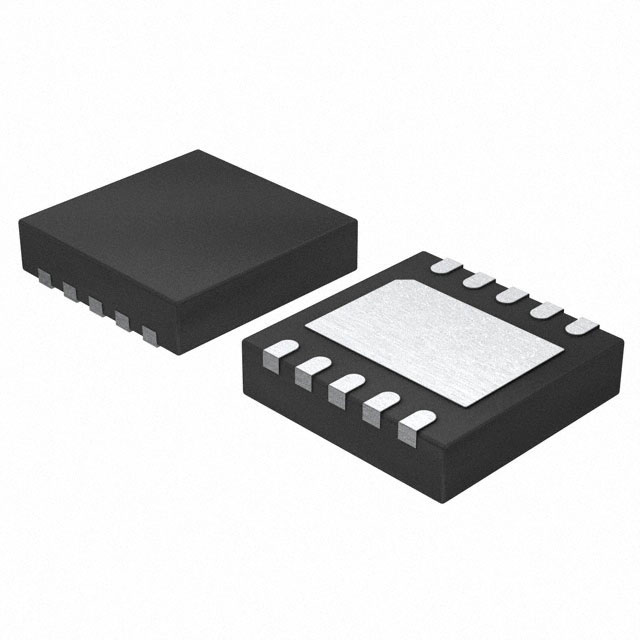

MAX20020ATBC/V+
IC REG BUCK 3.3V 500MA DL 10TDFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck Switching Regulator IC Positive Fixed 3.3V, 1.2V 2 Output 500mA, 500mA 10-WFDFN Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 10-WFDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Down |
| Current - Output | 500mA, 500mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Frequency - Switching | 3.2MHz |
| Voltage - Input (Max) | 17V |
| Topology | Buck |
| Supplier Device Package | 10-TDFN-EP (2x3) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V, 1.2V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
