MAX20006EAFOA/VY+T
IC REG BUCK 5V 6A 17FC2QFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX20006EAFOA-VY-T is a high-performance, automotive-grade buck switching regulator. This component features a fixed 5V output voltage and a 6A output current capability, designed for step-down applications. Operating with an input voltage range from 3.5V to 36V, it utilizes a 2.1MHz switching frequency for efficient power conversion. The device integrates a synchronous rectifier and is housed in a 17-PowerWFQFN package with wettable flanks for enhanced solder joint reliability, suitable for surface mount applications. Its AEC-Q100 qualification makes it ideal for demanding automotive environments, including infotainment systems, advanced driver-assistance systems (ADAS), and automotive lighting. The MAX20006EAFOA-VY-T is supplied on a tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 29 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

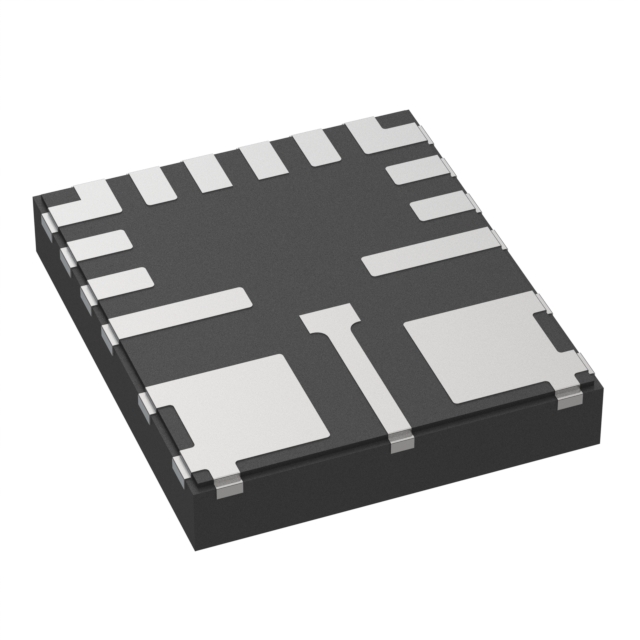

| Package / Case | 17-PowerWFQFN |
| Output Type | Fixed |
| Mounting Type | Surface Mount, Wettable Flank |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 6A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Frequency - Switching | 2.1MHz |
| Voltage - Input (Max) | 36V |
| Topology | Buck |
| Supplier Device Package | 17-FC2QFN (3.5x3.75) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 3.5V |
| Voltage - Output (Min/Fixed) | 5V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
