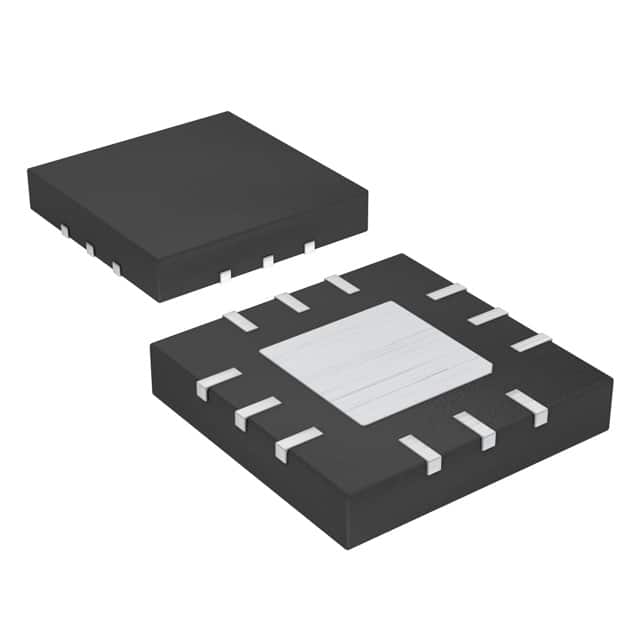

MAX1878ETC+
IC REG BUCK BST ADJ DL 12TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck, Boost Switching Regulator IC Positive Adjustable 1.25V, 2V 2 Output 140mA (Switch), 330mA (Switch) 12-WQFN Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 12-WQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Up, Step-Down |
| Current - Output | 140mA (Switch), 330mA (Switch) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 500kHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck, Boost |
| Supplier Device Package | 12-TQFN (4x4) |
| Synchronous Rectifier | Both |
| Voltage - Output (Max) | 5.5V, 28V |
| Voltage - Input (Min) | 2V |
| Voltage - Output (Min/Fixed) | 1.25V, 2V |
