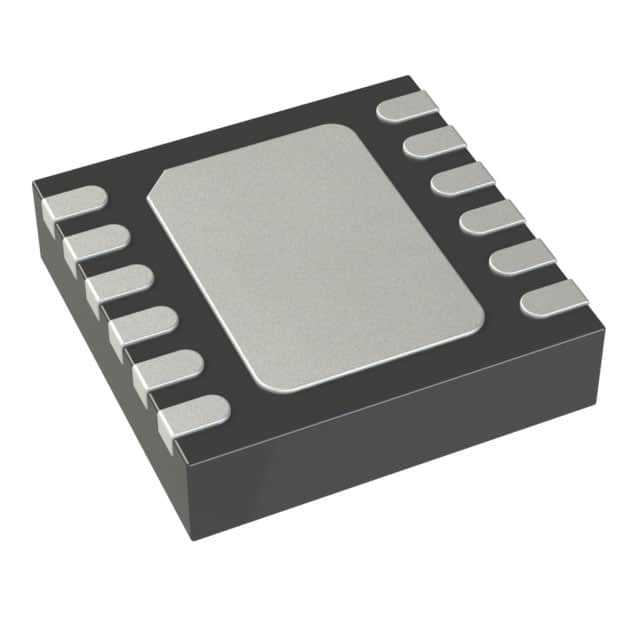

MAX17760ATC+T
IC REG BUCK ADJ 300MA 12TDFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 300mA 12-WFDFN Exposed Pad
Additional Information
Series: HimalayaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 300mA |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz, 300kHz, 400kHz, 600kHz |
| Voltage - Input (Max) | 76V |
| Topology | Buck |
| Supplier Device Package | 12-TDFN (3x3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 66.88V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
