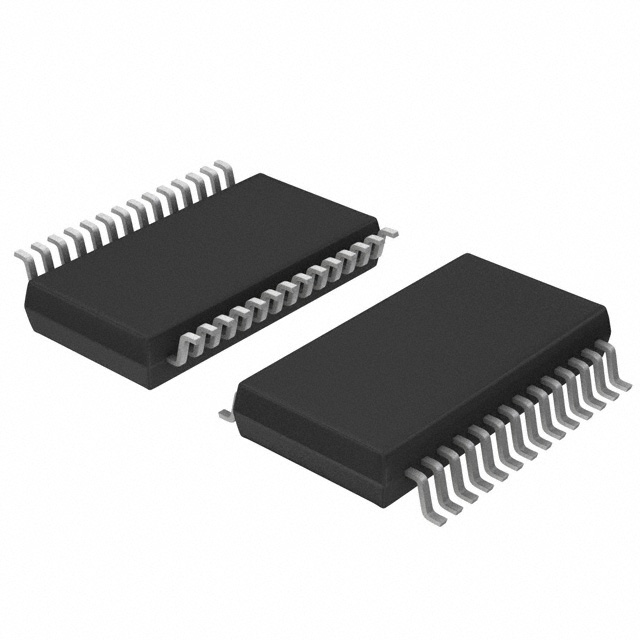

MAX1774EEI+T
IC REG BCK ADJ 1.5A/2A DL 28QSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck Switching Regulator IC Positive Adjustable 1V, 1.25V 2 Output 1.5A, 2A 28-SSOP (0.154"", 3.90mm Width)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.154"", 3.90mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Down |
| Current - Output | 1.5A, 2A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1.25MHz |
| Voltage - Input (Max) | 28V |
| Topology | Buck |
| Supplier Device Package | 28-QSOP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5V, 5.5V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 1V, 1.25V |
