MAX17244ETERA+T
IC REG BUCK PROG 1V 2.5A 16TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX17244ETERA-T is a versatile step-down switching regulator designed for high-performance power management applications. This component features a single positive output configurable from 1V up to 10V, with a fixed output option of 1V (3.3V). It can deliver a continuous output current of 2.5A, supported by a synchronous rectification topology for enhanced efficiency. The switching frequency is adjustable from 400kHz to 2.2MHz, allowing for optimization of component size and performance.

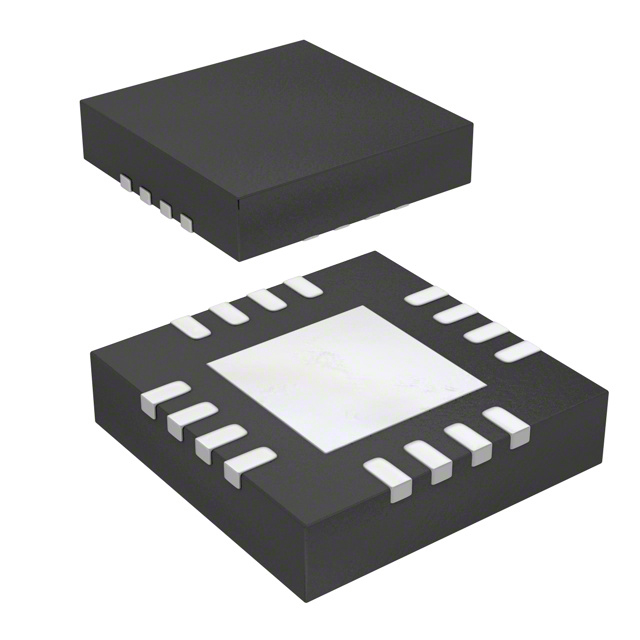

Operating within an input voltage range of 3.5V to 36V, the MAX17244ETERA-T is suitable for a broad spectrum of industrial and automotive systems. Its 16-TQFN (5x5) exposed pad package ensures effective thermal management. Operating temperatures range from -40°C to 85°C. This Analog Devices Inc./Maxim Integrated device is available in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Output Type | Programmable (Fixed) |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 2.5A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 400kHz ~ 2.2MHz |
| Voltage - Input (Max) | 36V |
| Topology | Buck |
| Supplier Device Package | 16-TQFN (5x5) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 10V |
| Voltage - Input (Min) | 3.5V |
| Voltage - Output (Min/Fixed) | 1V (3.3V) |
