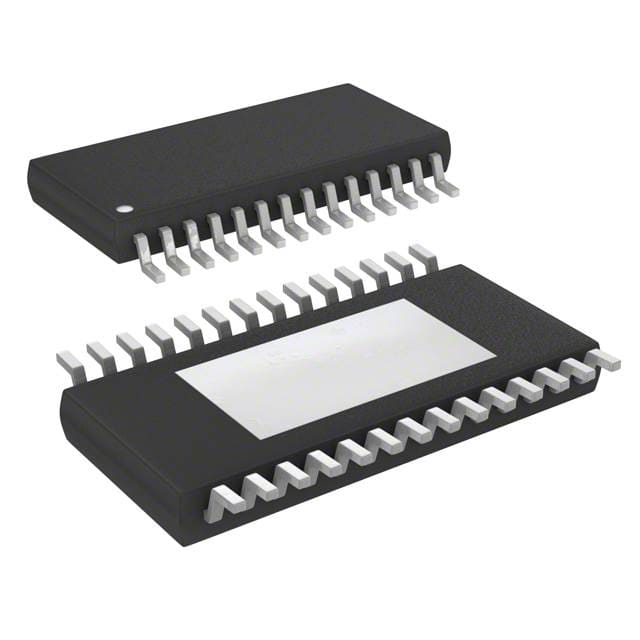

MAX1709EUI+
IC REG BOOST ADJ 7.5A 28TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Boost Switching Regulator IC Positive Adjustable (Programmable) 2.5V (3.3V, 5V) 1 Output 7.5A (Switch) 28-TSSOP (0.173"", 4.40mm Width) Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Adjustable (Programmable) |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up |
| Current - Output | 7.5A (Switch) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 350kHz ~ 1MHz |
| Voltage - Input (Max) | 5V |
| Topology | Boost |
| Supplier Device Package | 28-TSSOP-EP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 0.7V |
| Voltage - Output (Min/Fixed) | 2.5V (3.3V, 5V) |
