MAX15108EWP+T
IC REG BUCK ADJ 8A 20WLPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX15108EWP-T is a highly efficient, adjustable output positive buck switching regulator. This device provides a single output capable of delivering up to 8A with an output voltage range from 0.6V to 5.23V. Operating with a wide input voltage range of 2.7V to 5.5V, the MAX15108EWP-T features a high switching frequency of 1MHz, enabling the use of small external components. Its integrated synchronous rectifier enhances efficiency. The compact 20-WLP (CSP) package is ideal for space-constrained applications. This component is commonly found in high-performance computing, telecommunications infrastructure, and industrial power management systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

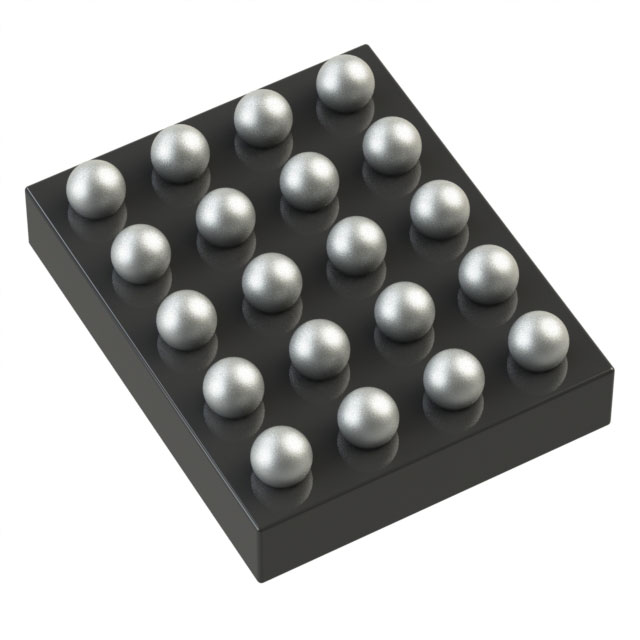

| Package / Case | 20-WFBGA, WLCSP |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 8A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 20-WLP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.23V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 0.6V |
