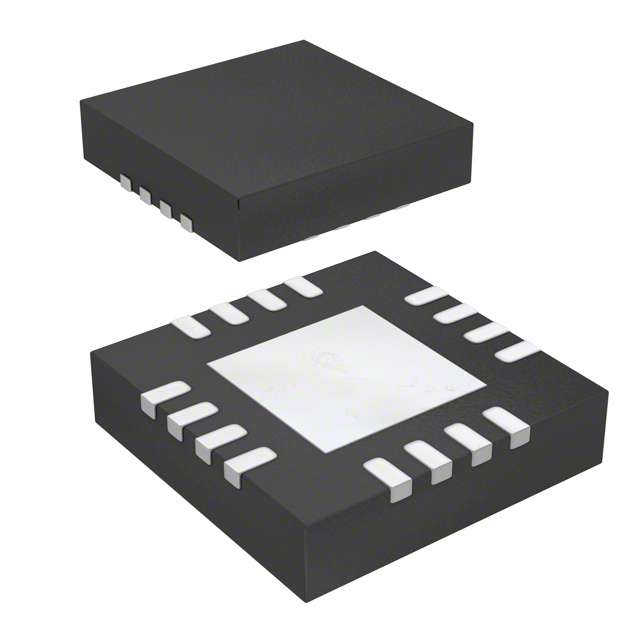

MAX15036ATE+
IC REG BUCK BST ADJ 3A 16TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck, Boost Switching Regulator IC Positive Adjustable 0.6V 1 Output 3A 16-WQFN Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 16-WQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up, Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 312kHz ~ 2.1MHz |
| Voltage - Input (Max) | 23V |
| Topology | Buck, Boost |
| Supplier Device Package | 16-TQFN (5x5) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 28V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
