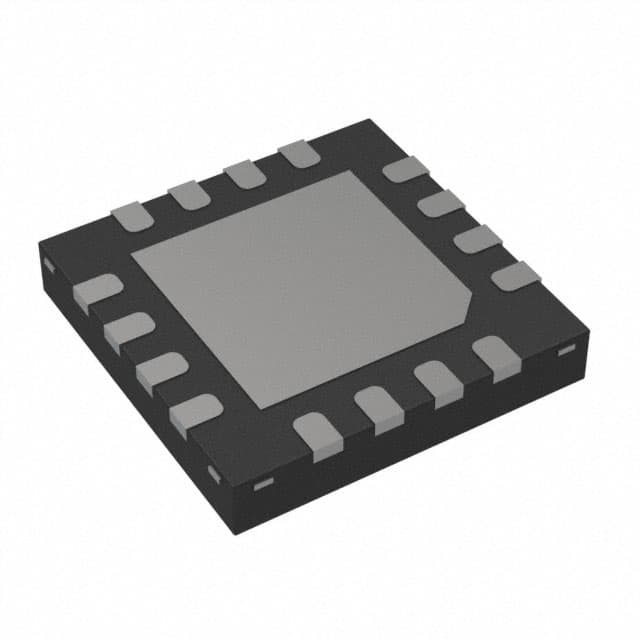

MAX5974BETE+T
IC REG CTRLR MULT TOP 16TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Controllers
Quality Control: Learn More
Flyback, Forward Converter Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 16-TQFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | 100kHz ~ 600kHz |
| Topology | Flyback, Forward Converter |
| Voltage - Supply (Vcc/Vdd) | 8.4V ~ 26V |
| Supplier Device Package | 16-TQFN (3x3) |
| Synchronous Rectifier | Yes |
| Control Features | Dead Time Control, Enable, Frequency Control, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 80% |
| Clock Sync | Yes |
| Number of Outputs | 1 |
