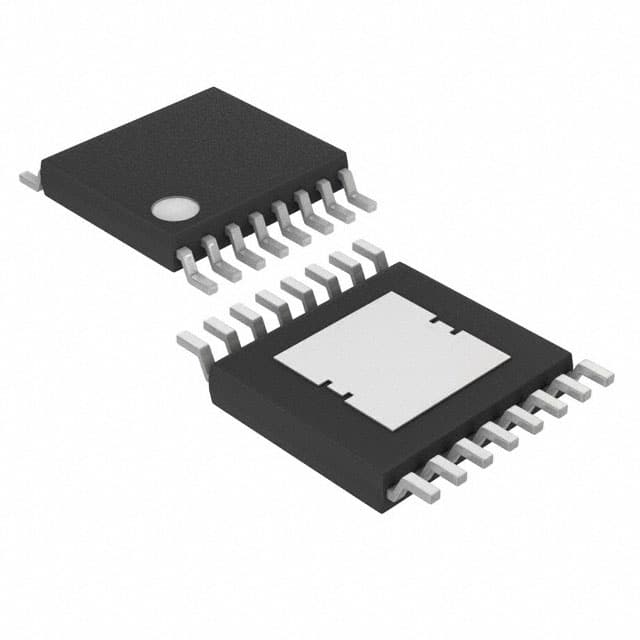

MAX5068BAUE+T
IC REG CTRLR FLYBACK 16TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Controllers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX5068BAUE-T is a flyback DC-DC controller IC designed for positive, isolation-capable output configurations. This 16-TSSOP-EP packaged component features a wide input voltage range of 10.8V to 24V and supports switching frequencies from 25kHz up to 1.25MHz. Key control features include dead time control, enable functionality, and frequency control, with a maximum duty cycle of 50%. The device is capable of both step-up and step-down operation, utilizing a single output phase. It incorporates synchronous rectification and supports clock synchronization. This controller is suitable for applications in the automotive, industrial, and telecommunications sectors. The component is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | 25kHz ~ 1.25MHz |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 10.8V ~ 24V |
| Supplier Device Package | 16-TSSOP-EP |
| Synchronous Rectifier | Yes |
| Control Features | Dead Time Control, Enable, Frequency Control |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 50% |
| Clock Sync | Yes |
| Number of Outputs | 1 |
