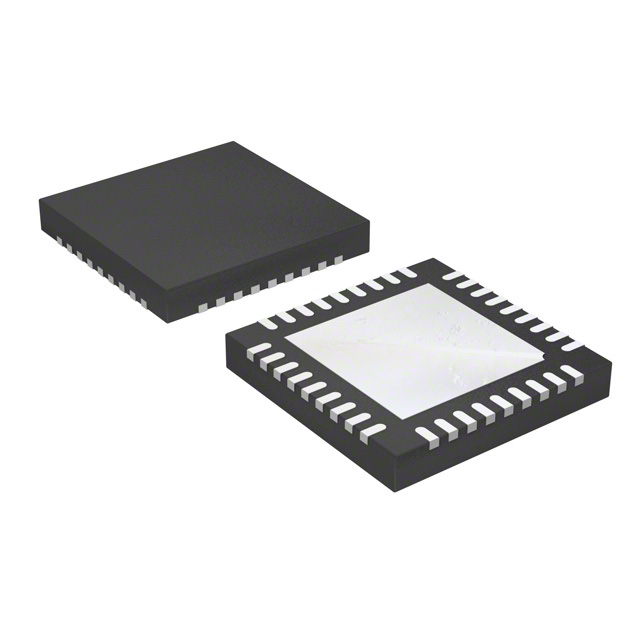

MAX20751EKX+T
IC REG CTRLR BUCK PMBUS 36QFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck Regulator Positive Output Step-Down PMBus DC-DC Controller IC 36-QFN (6x6)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-VFQFN Exposed Pad |
| Output Type | PWM Signal |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz ~ 800kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.63V |
| Supplier Device Package | 36-QFN (6x6) |
| Synchronous Rectifier | No |
| Control Features | Phase Control, Power Good, Ramp |
| Serial Interfaces | PMBus |
| Output Phases | 4 |
| Duty Cycle (Max) | - |
| Clock Sync | No |
| Number of Outputs | 4 |
