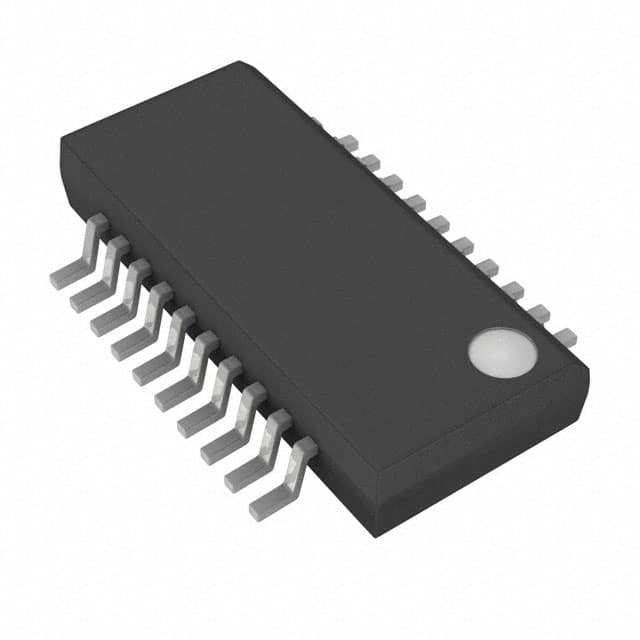

MAX1961EEP+T
IC REG CTRLR BUCK 20QSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck Regulator Positive Output Step-Down DC-DC Controller IC 20-QSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SSOP (0.154"", 3.90mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 500kHz, 1MHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 5.5V |
| Supplier Device Package | 20-QSOP |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Enable, Frequency Control |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 92% |
| Clock Sync | Yes |
| Number of Outputs | 1 |
Request a Quote
