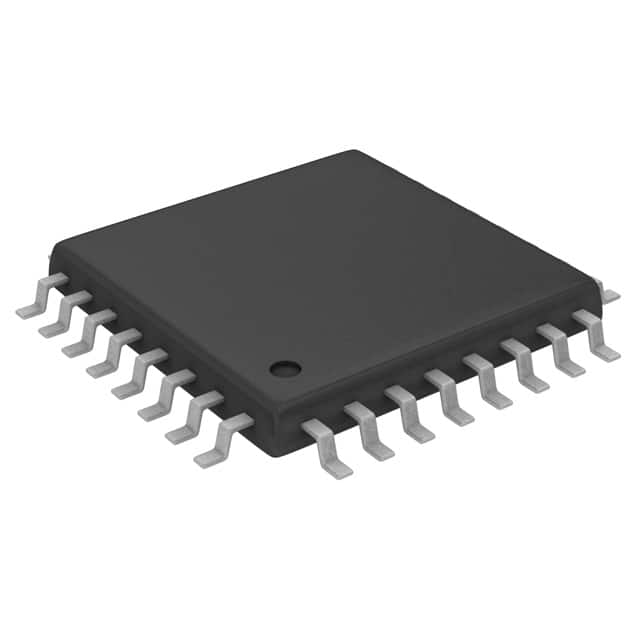

MAX17559ACJ+T
IC REG CTRLR BUCK 32TQFPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck Regulator Positive Output Step-Down DC-DC Controller IC 32-TQFP (7x7)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-TQFP |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 2.2MHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 60V |
| Supplier Device Package | 32-TQFP (7x7) |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | - |
| Clock Sync | No |
| Number of Outputs | 2 |
Request a Quote
