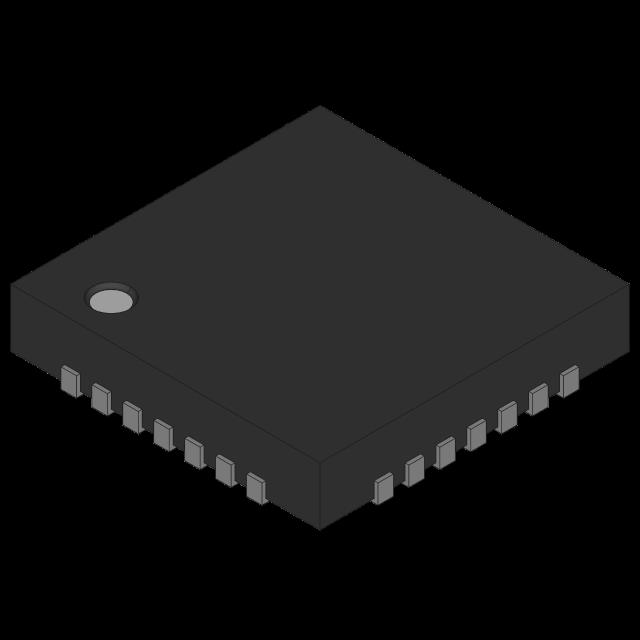

productimage

MAX16933ATIR/VY+

IC REGULATOR

Manufacturer: Analog Devices Inc./Maxim Integrated

Categories: DC DC Switching Controllers

Quality Control: Learn More

Analog Devices Inc./Maxim Integrated's MAX16933ATIR-VY-, a two-output positive step-down DC-DC controller, is engineered for high-performance automotive applications. This AEC-Q100 qualified component features a buck topology with synchronous rectification, capable of operating with input voltages ranging from 3.5V to 36V. The device supports adjustable switching frequencies between 200kHz and 1MHz, with a maximum duty cycle of 98.5%. Control features include Enable and Frequency Control, alongside a Power Good output. Its 2-phase output configuration and transistor driver output type are suitable for demanding power management tasks. The 28-TQFN-EP (5x5) exposed pad package ensures robust thermal performance for surface mount applications. Clock synchronization is integrated for flexible system design.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tray
Technical Details:
PackagingTray
Package / Case28-WFQFN Exposed Pad
Output TypeTransistor Driver
Mounting TypeSurface Mount
FunctionStep-Down
Operating Temperature-40°C ~ 125°C
Output ConfigurationPositive
Frequency - Switching200kHz ~ 1MHz
TopologyBuck
Voltage - Supply (Vcc/Vdd)3.5V ~ 36V
Supplier Device Package28-TQFN-EP (5x5)
Synchronous RectifierYes
Control FeaturesEnable, Frequency Control, Power Good
Serial Interfaces-
Output Phases2
Duty Cycle (Max)98.5%
Clock SyncYes
GradeAutomotive
Number of Outputs2
QualificationAEC-Q100
