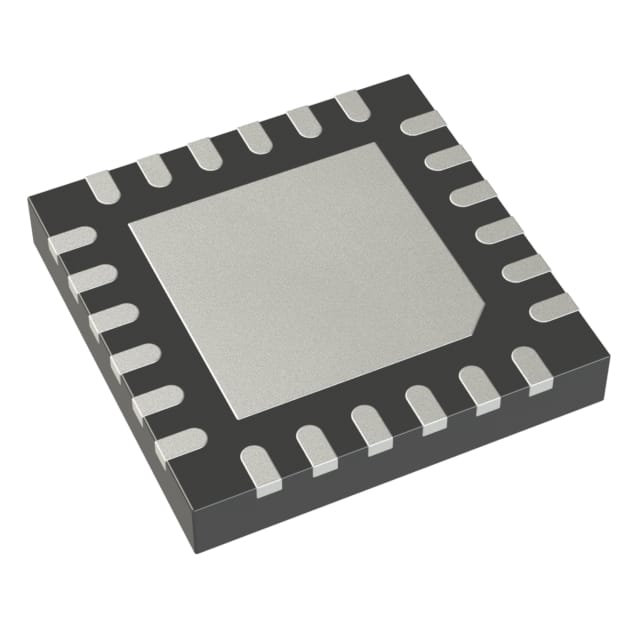

MAX15569GTG+
IC REG CTRLR BUCK I2C 24TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Controllers
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX15569GTG- is a high-performance, 2-phase synchronous buck controller designed for efficient power conversion. This I2C-controlled DC-DC controller features a switching frequency range from 600kHz to 1.4MHz, enabling compact inductor and capacitor selection. It offers precise output voltage regulation with positive output configurations and a PWM output type. Control features include Enable and On Time control, facilitating flexible system management. The device operates within a supply voltage of 4.75V to 5.25V and an ambient temperature range of -40°C to 105°C. Packaged in a 24-TQFN (4x4) with an exposed pad for enhanced thermal performance and surface mount mounting, the MAX15569GTG- is suitable for applications in consumer electronics, telecommunications, and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-WFQFN Exposed Pad |
| Output Type | PWM Signal |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 600kHz ~ 1.4MHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Supplier Device Package | 24-TQFN (4x4) |
| Synchronous Rectifier | No |
| Control Features | Enable, On Time Control |
| Serial Interfaces | I2C |
| Output Phases | 2 |
| Duty Cycle (Max) | - |
| Clock Sync | No |
| Number of Outputs | 2 |
