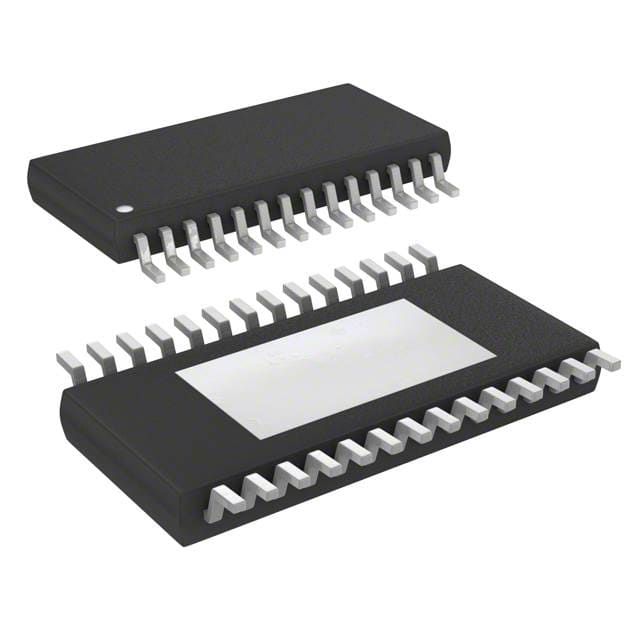

MAX15034BAUI+T
IC REG CTRLR BUCK 28TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Switching Controllers
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX15034BAUI-T is a highly integrated, dual-output, step-down DC-DC controller designed for efficient power conversion. This buck regulator features a flexible input voltage range of 4.75V to 5.5V and 5V to 28V, operating with switching frequencies from 100kHz up to 1MHz. The device offers robust control features including Enable and Frequency Control, and its 2-phase output configuration with synchronous rectification ensures high efficiency. Housed in a 28-TSSOP-EP package with an exposed pad for enhanced thermal management, it is suitable for surface-mount applications. The MAX15034BAUI-T is commonly employed in industrial automation, consumer electronics, and telecommunications infrastructure. Its positive output configuration and transistor driver output make it a versatile component for demanding power supply designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 1MHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.5V, 5V ~ 28V |
| Supplier Device Package | 28-TSSOP-EP |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Frequency Control |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | - |
| Clock Sync | No |
| Number of Outputs | 2 |
