MAXM17626AMB+T
2.7V TO 5.5V, 600MA USLIC POWERManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Converters
Quality Control: Learn More

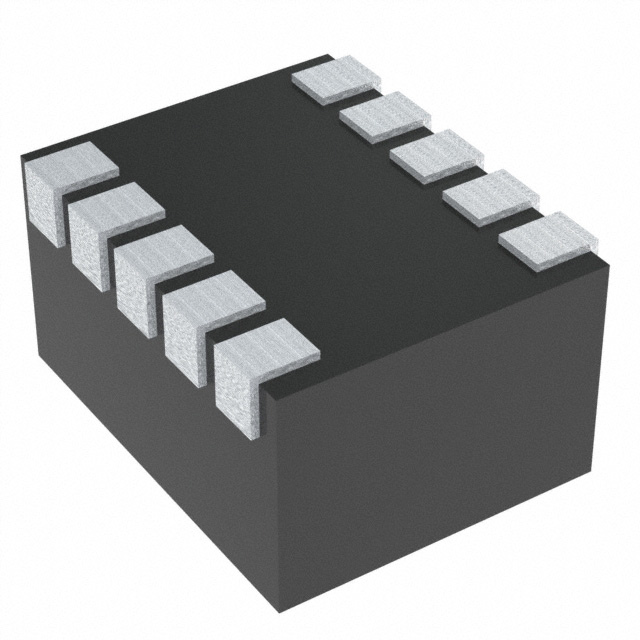

The Analog Devices Inc./Maxim Integrated MAXM17626AMB-T is a non-isolated Point-of-Load DC-DC converter from the Himalaya series. This compact 10-eMGA module offers a single output with an adjustable voltage range of 0.8V to 3.3V and a maximum output current of 600mA. It operates with an input voltage range from 2.7V to 5.5V. Key features include an adjustable output and remote on/off control. The component is designed for surface mounting and measures 2.6mm x 2.1mm x 1.3mm. It includes an active-low enable pin for control. This device is suitable for ITE (Commercial) applications and operates within a temperature range of -40°C to 125°C. The MAXM17626AMB-T is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: HimalayaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 45 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Output, Remote On/Off |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SMD Module |
| Size / Dimension | 0.10"" L x 0.08"" W x 0.05"" H (2.6mm x 2.1mm x 1.3mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 5.5V |
| Approval Agency | - |
| Efficiency | - |
| Current - Output (Max) | 600mA |
| Supplier Device Package | 10-eMGA (2.6x2.1) |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output 1 | 0.8 ~ 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Control Features | Enable, Active Low |
| Number of Outputs | 1 |
| Standard Number | - |
