MAXM17574ALC#T
DC DC CONVERTER 0.9-15VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC DC Converters
Quality Control: Learn More

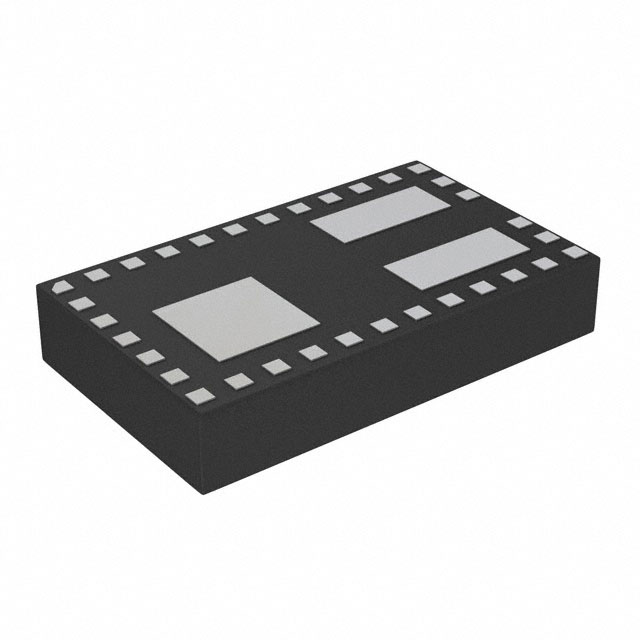

Analog Devices Inc./Maxim Integrated Himalaya Series MAXM17574ALC-T is a non-isolated Power-over-Linear (PoL) DC-DC converter module. This single-output device accepts an input voltage range of 4.5V to 60V and provides a configurable output voltage from 0.9V to 15V, capable of delivering up to 3A. The module features integrated protection circuits including Overcurrent Protection (OCP), Overtemperature Protection (OTP), and Undervoltage Lockout (UVLO). Designed for surface mounting, it is housed in a 33-LGA (15x9) package with dimensions of 15.0mm x 9.0mm x 2.8mm. The operational temperature range is -40°C to 125°C. This component is commonly utilized in Information Technology Equipment (ITE) commercial applications. It is supplied in a tape and reel package.
Additional Information
Series: HimalayaRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, UVLO |
| Packaging | Tape & Reel (TR) |
| Package / Case | 33-PowerBLGA Module |
| Size / Dimension | 0.59"" L x 0.35"" W x 0.11"" H (15.0mm x 9.0mm x 2.8mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 60V |
| Efficiency | - |
| Current - Output (Max) | 3A |
| Supplier Device Package | 33-LGA (15x9) |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output 1 | 0.9 ~ 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Number of Outputs | 1 |
