MAXM17514EVKIT#
EVAL KIT FOR MAXM17514Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Quality Control: Learn More

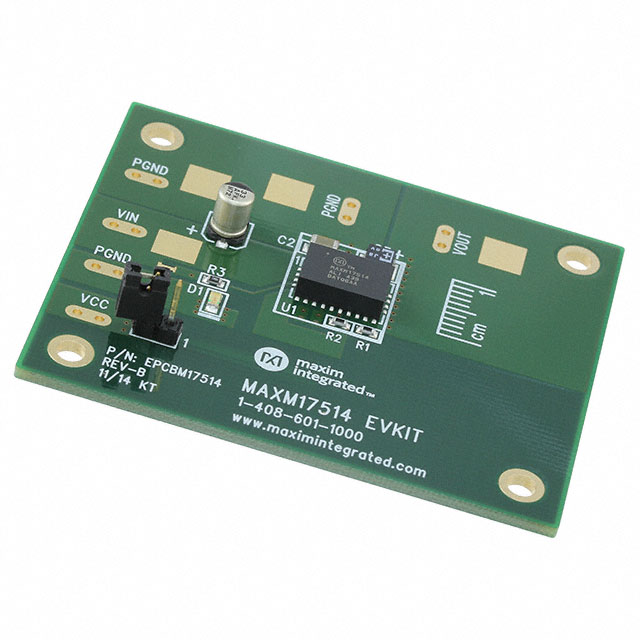

The Analog Devices Inc./Maxim Integrated MAXM17514EVKIT- is a fully populated evaluation board designed for the MAXM17514 DC/DC buck regulator. This evaluation kit facilitates rapid prototyping and validation of the MAXM17514, a compact, high-efficiency step-down converter. It supports input voltages ranging from 2.4V to 5.5V and provides a non-isolated output voltage adjustable from 0.75V to 3.6V, capable of delivering up to 4A of output current. The integrated MAXM17514 operates at a switching frequency of 1MHz, enabling the use of smaller external components. This evaluation board is suitable for applications in telecommunications, computing, and industrial power management systems requiring efficient voltage conversion. The kit includes the necessary board(s) for immediate evaluation.
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Voltage - Output | 0.75V ~ 3.6V |
| Voltage - Input | 2.4V ~ 5.5V |
| Current - Output | 4A |
| Frequency - Switching | 1MHz |
| Regulator Topology | Buck |
| Board Type | Fully Populated |
| Utilized IC / Part | MAXM17514 |
| Supplied Contents | Board(s) |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Non-Isolated |
