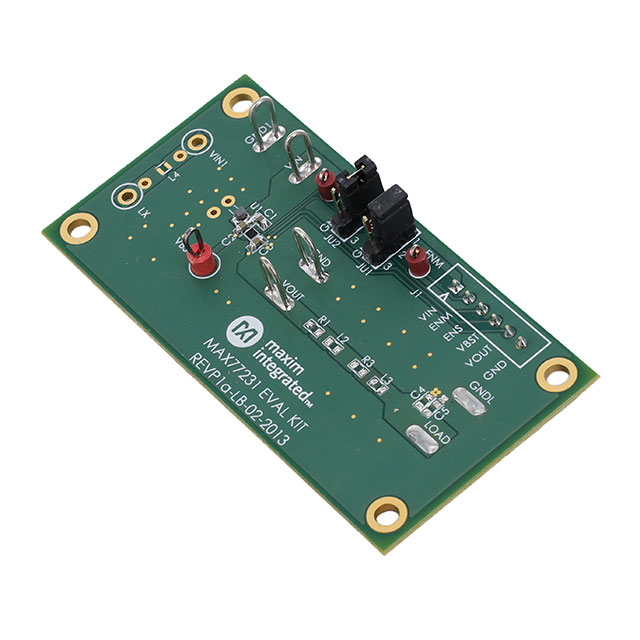

MAX77231EVKIT#

EV KIT HIGH VOLTAGE BOOST

Manufacturer: Analog Devices Inc./Maxim Integrated

Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards

Quality Control: Learn More

The Analog Devices Inc./Maxim Integrated MAX77231EVKIT- is a fully populated evaluation board designed for the MAX77231 DC/DC step-up converter. This evaluation kit facilitates the assessment of a high-voltage boost application with a single, non-isolated output. The board supports input voltages ranging from 2.7V to 4.8V and provides a fixed output voltage of 11.2V at a nominal output current of 10mA. This solution is well-suited for applications requiring efficient voltage elevation, commonly found in portable electronics and medical devices. The evaluation kit includes the necessary board(s) for immediate testing and analysis of the MAX77231's performance in a boost regulator topology.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:
Technical Details:
PackagingBox
Voltage - Output11.2V
Voltage - Input2.7V ~ 4.8V
Current - Output10mA
Frequency - Switching-
Regulator TopologyBoost
Board TypeFully Populated
Utilized IC / PartMAX77231
Supplied ContentsBoard(s)
Main PurposeDC/DC, Step Up
Outputs and Type1, Non-Isolated
