MAX17761EVKITB#

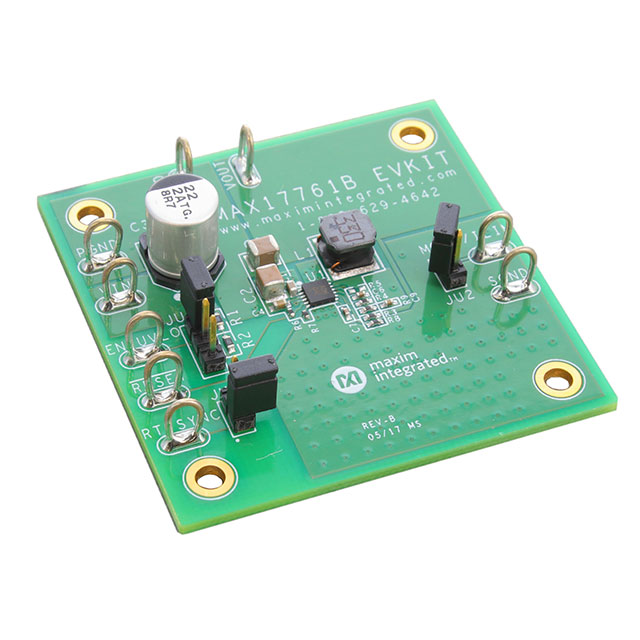

EVAL BOARD FOR MAX17761 5V OUTManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX17761EVKITB- is a fully populated evaluation board designed for the MAX17761 DC/DC step-down converter. This board facilitates the evaluation of a non-isolated, 5V output with a 1A current capability. The MAX17761 utilizes a buck regulator topology and operates at a switching frequency of 400kHz, enabling efficient power conversion. Input voltage ranges from 6.5V to 76V. This evaluation kit is suitable for applications requiring robust voltage regulation and is commonly found in industrial automation, medical equipment, and consumer electronics. The kit includes the necessary boards for comprehensive testing and analysis of the MAX17761's performance characteristics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Voltage - Output | 5V |
| Voltage - Input | 6.5V ~ 76V |
| Current - Output | 1A |
| Frequency - Switching | 400kHz |
| Regulator Topology | Buck |
| Board Type | Fully Populated |
| Utilized IC / Part | MAX17761 |
| Supplied Contents | Board(s) |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Non-Isolated |
