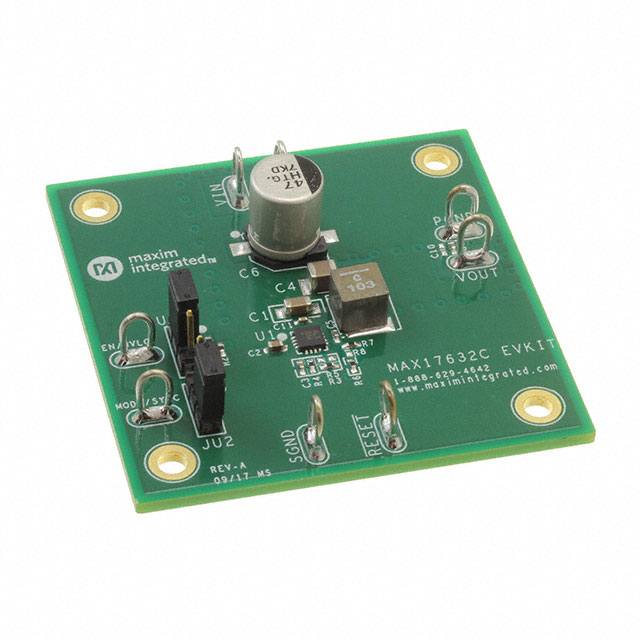

MAX17632C5EVKIT#
EVAL BOARD FOR MAX17632CManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX17632C5EVKIT- is a fully populated evaluation board designed to showcase the capabilities of the MAX17632 DC/DC step-down converter. This evaluation kit facilitates rapid prototyping and validation of designs utilizing the MAX17632, a 2A buck regulator. It supports a wide input voltage range from 6.5V to 36V, delivering a fixed 5V non-isolated output. The integrated MAX17632 operates at a 400kHz switching frequency, contributing to efficient power conversion and a compact solution footprint. This evaluation board is suitable for applications in industrial automation, automotive systems, and consumer electronics where robust DC/DC power conversion is critical. The kit includes the necessary board(s) for immediate testing and evaluation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Voltage - Output | 5V |
| Voltage - Input | 6.5V ~ 36V |
| Current - Output | 2A |
| Frequency - Switching | 400kHz |
| Regulator Topology | Buck |
| Board Type | Fully Populated |
| Utilized IC / Part | MAX17632 |
| Supplied Contents | Board(s) |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Non-Isolated |
Request a Quote
Clients Also Buy
MAX15062C2.5EVKIT#
KIT EVALUATION MAX15062C2.5
MAXM17546EVKITB#
EVAL KIT FOR MAXM17546

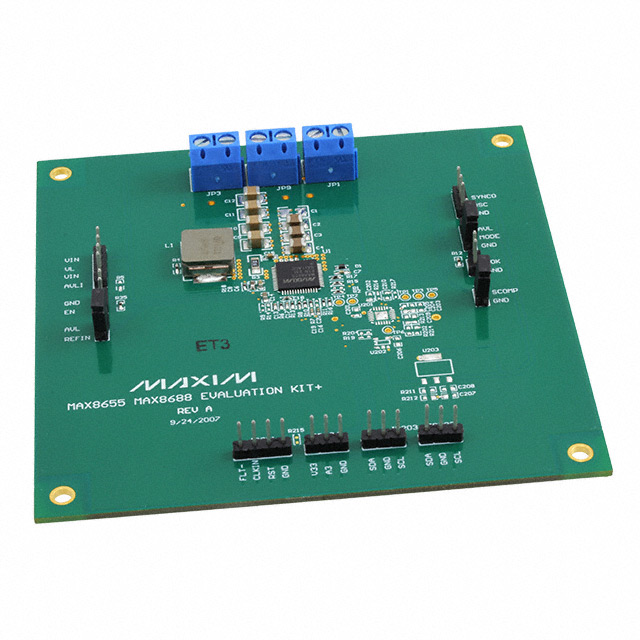

MAX8655EVKIT+
