MAX17574EVKITB#
EVKIT FOR MAX17574Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Quality Control: Learn More

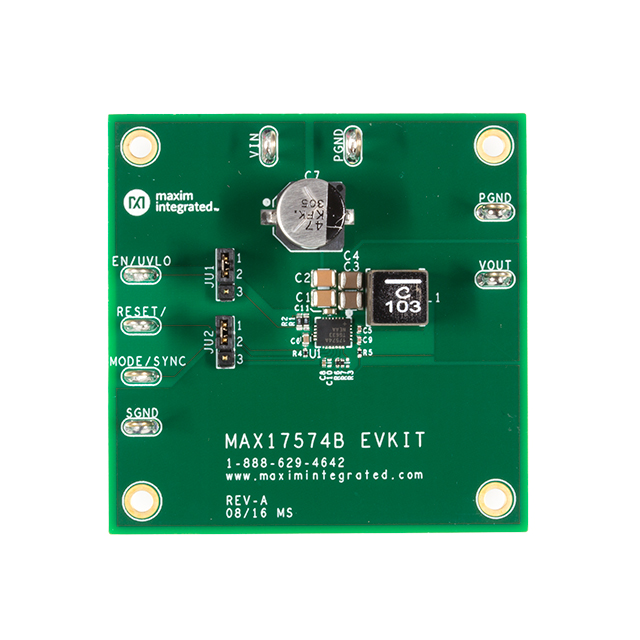

The Analog Devices Inc./Maxim Integrated MAX17574EVKITB- is an evaluation kit for the MAX17574, a high-voltage synchronous step-down DC-DC converter. This fully populated evaluation board is designed to showcase the capabilities of the MAX17574 in a buck regulator topology. It supports input voltages ranging from 6.5V to 60V and provides a regulated 5V non-isolated output with an impressive 3A current capability. The switching frequency is set at 500kHz, optimizing for efficiency and component size. This evaluation kit is suitable for applications in industrial automation, automotive systems, and general-purpose power supply design where robust and efficient voltage conversion is critical. The board is supplied in box packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Voltage - Output | 5V |
| Voltage - Input | 6.5V ~ 60V |
| Current - Output | 3A |
| Frequency - Switching | 500kHz |
| Regulator Topology | Buck |
| Board Type | Fully Populated |
| Utilized IC / Part | MAX17574 |
| Supplied Contents | Board(s) |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Non-Isolated |
