MAX17559EVKIT#
EVAL KIT FOR MAX17559Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Quality Control: Learn More

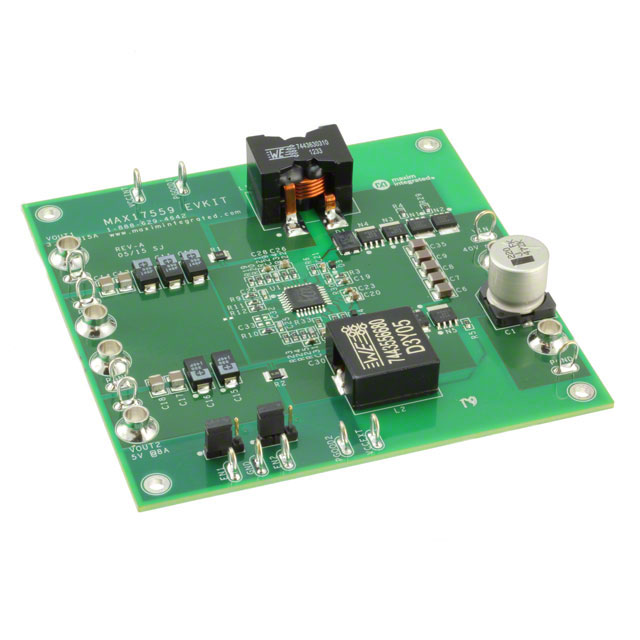

The Analog Devices Inc./Maxim Integrated MAX17559EVKIT- is a fully populated evaluation board designed to showcase the capabilities of the MAX17559 DC/DC step-down converter. This evaluation kit facilitates the assessment of a non-isolated, dual-output buck regulator configuration. It supports input voltage ranges from 6V to 60V, with configurable output voltages of 3.3V and 5V. The board is engineered to deliver up to 15A on one output and 8A on the second, operating at a switching frequency of 150kHz. This evaluation platform is suitable for applications in industrial automation, telecommunications infrastructure, and automotive systems requiring efficient and robust power conversion.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Voltage - Output | 3.3V, 5V |
| Voltage - Input | 6V ~ 60V |
| Current - Output | 15A, 8A |
| Frequency - Switching | 150kHz |
| Regulator Topology | Buck |
| Board Type | Fully Populated |
| Utilized IC / Part | MAX17559 |
| Supplied Contents | Board(s) |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 2, Non-Isolated |
