MAX17536EVKITB#
EVAL KIT FOR MAX17536Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Quality Control: Learn More

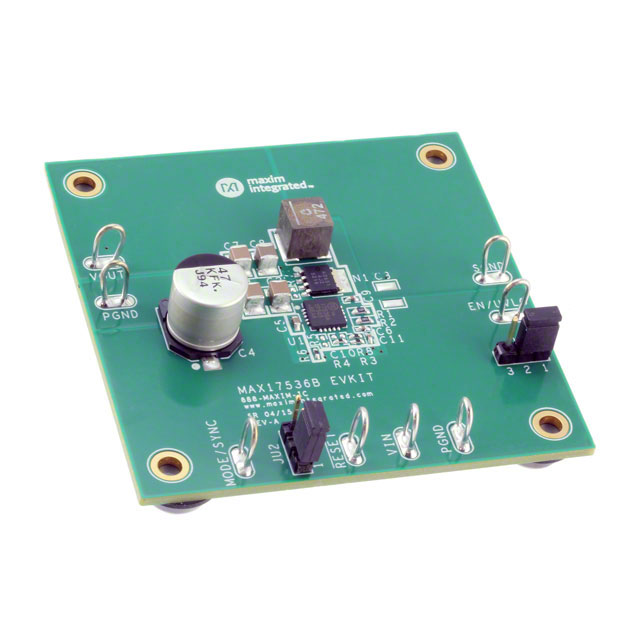

Analog Devices Inc./Maxim Integrated MAX17536EVKITB- is a fully populated evaluation board designed to demonstrate the MAX17536 buck regulator. This evaluation kit facilitates the assessment of a DC/DC step-down conversion from an input voltage range of 6.5V to 60V, providing a fixed 5V non-isolated output. The MAX17536 features a switching frequency of 450kHz and supports an output current of up to 4A. This solution is well-suited for applications in industrial automation, communication infrastructure, and automotive systems requiring efficient and reliable power conversion. The board is supplied as a complete unit for immediate evaluation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Voltage - Output | 5V |
| Voltage - Input | 6.5V ~ 60V |
| Current - Output | 4A |
| Frequency - Switching | 450kHz |
| Regulator Topology | Buck |
| Board Type | Fully Populated |
| Utilized IC / Part | MAX17536 |
| Supplied Contents | Board(s) |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Non-Isolated |
