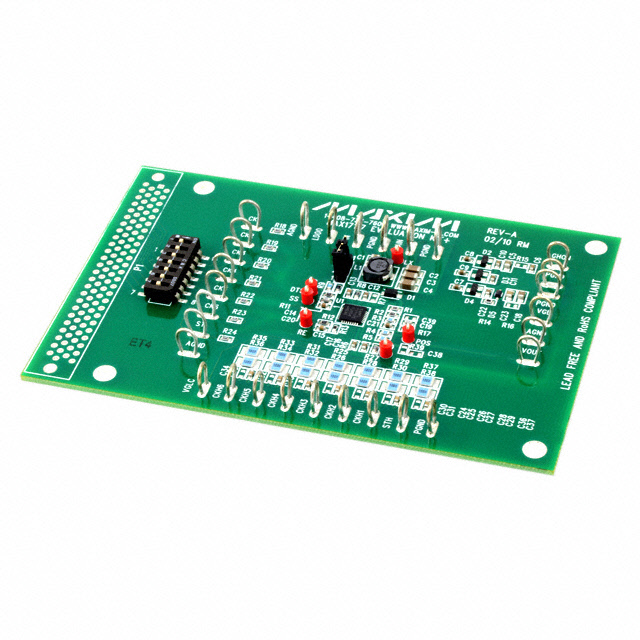

MAX17117EVKIT+
EVAL KIT FOR MAX17117Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX17117EVKIT- is a fully populated evaluation board designed for the MAX17117 special purpose DC/DC converter. This evaluation kit facilitates the testing and development of LCD power supply solutions, featuring four non-isolated outputs. The board supports input voltages ranging from 2.3V to 5.5V, with output voltages configurable to 4.25V, 8.5V, 23V, and -6V. The integrated MAX17117 utilizes both boost and inverting regulator topologies, operating at a switching frequency of 1.2MHz. Output current capabilities include 250mA, 200mA, 20mA, and 10mA across the various outputs. This evaluation board is suitable for applications in portable electronics and display systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Voltage - Output | 4.25V, 8.5V, 23V, -6V |
| Voltage - Input | 2.3V ~ 5.5V |
| Current - Output | 250mA, 200mA, 20mA, 10mA |
| Frequency - Switching | 1.2MHz |
| Regulator Topology | Boost, Inverting |
| Board Type | Fully Populated |
| Utilized IC / Part | MAX17117 |
| Supplied Contents | Board(s) |
| Main Purpose | Special Purpose DC/DC, LCD Supply |
| Outputs and Type | 4, Non-Isolated |
