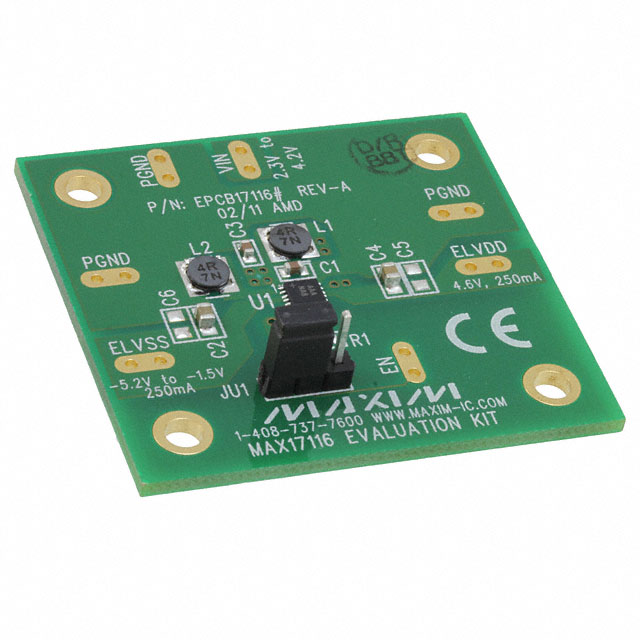

KIT EVAL FOR MAX17116

Manufacturer: Analog Devices Inc./Maxim Integrated

Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards

Quality Control: Learn More

The Analog Devices Inc./Maxim Integrated MAX17116EVKIT- is a fully populated evaluation board designed to showcase the MAX17116, a special-purpose DC/DC controller for Active Matrix OLED displays. This evaluation kit facilitates the testing and validation of the MAX17116's capabilities. Featuring two non-isolated outputs, it supports a boost topology for a 4.6V output and an inverting topology for a variable output ranging from -1.5V to -5.4V. The device operates with an input voltage range of 2.3V to 4.2V and utilizes a switching frequency of 1.4MHz, enabling efficient power conversion. The board is supplied as a single unit in its packaging. This evaluation kit is relevant for applications in consumer electronics and display technology where precise power management for OLED panels is critical.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:
Technical Details:
PackagingBox
Voltage - Output4.6V, -1.5V ~ -5.4V
Voltage - Input2.3V ~ 4.2V
Current - Output250mA, 250mA
Frequency - Switching1.4MHz
Regulator TopologyBoost, Inverting
Board TypeFully Populated
Utilized IC / PartMAX17116
Supplied ContentsBoard(s)
Main PurposeSpecial Purpose DC/DC, Active Matrix OLED
Outputs and Type2, Non-Isolated
