MAX17113EVKIT+

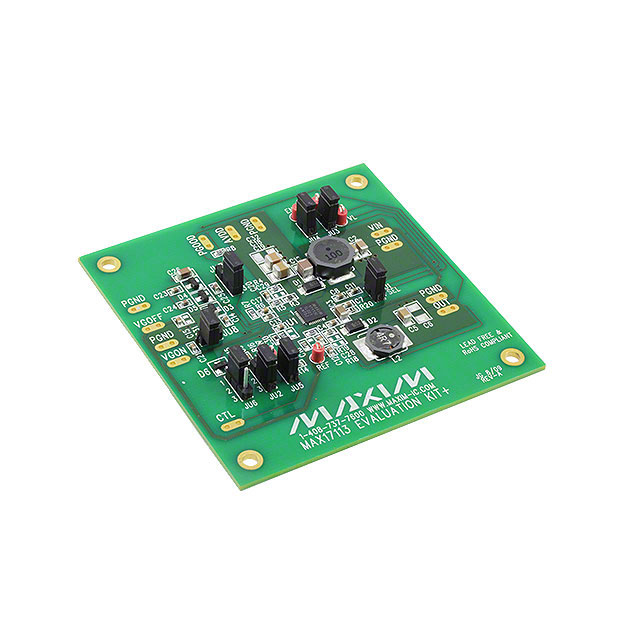

EVAL KIT FOR MAX17113

Manufacturer: Analog Devices Inc./Maxim Integrated

Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards

Quality Control: Learn More

The Analog Devices Inc./Maxim Integrated MAX17113EVKIT- is a fully populated evaluation board designed to demonstrate the capabilities of the MAX17113. This special-purpose DC/DC converter is optimized for LCD power supply applications, offering four non-isolated outputs. Input voltage ranges from 10.8V to 13.2V. The board provides multiple output voltages, including 3.3V, 16V, 35V, and -6V, with current capabilities of 2A, 1.5A, 100mA, and 100mA respectively. Its switching frequency is 450kHz. The evaluation kit showcases a versatile regulator topology, incorporating Boost, Buck, and Inverting configurations. This solution is relevant for applications in the display and consumer electronics industries.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:
Technical Details:
PackagingBox
Voltage - Output3.3V, 16V, 35V, -6V
Voltage - Input10.8V ~ 13.2V
Current - Output2A, 1.5A, 100mA, 100mA
Frequency - Switching450kHz
Regulator TopologyBoost, Buck, Inverting
Board TypeFully Populated
Utilized IC / PartMAX17113
Supplied ContentsBoard(s)
Main PurposeSpecial Purpose DC/DC, LCD Supply
Outputs and Type4, Non-Isolated
