MAX17112EVKIT+
EVAL KIT FOR MAX17112Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Quality Control: Learn More

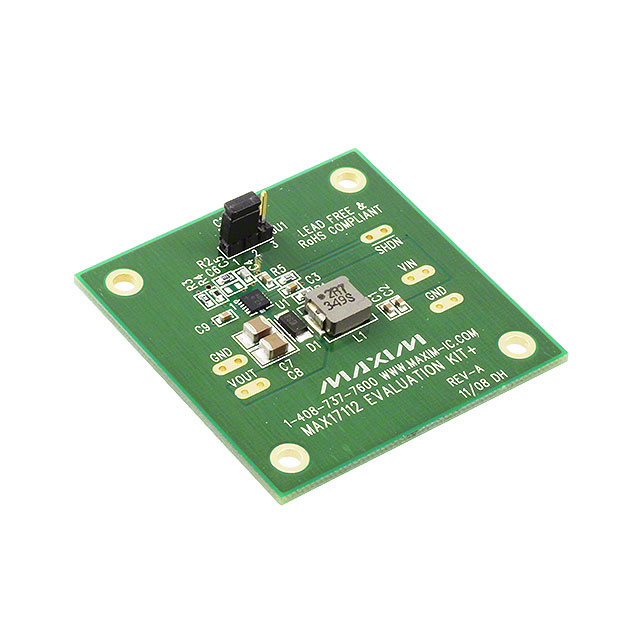

The Analog Devices Inc./Maxim Integrated MAX17112EVKIT- is a fully populated evaluation board designed to demonstrate the capabilities of the MAX17112, a special-purpose DC/DC converter for LCD power supplies. This evaluation kit features a boost regulator topology, capable of delivering a 15V non-isolated output with a maximum current of 600mA. The switching frequency is set at 1MHz, facilitating efficient power conversion. Input voltage for the board ranges from 4.5V to 5.5V. This evaluation platform is well-suited for validating power solutions in applications such as portable displays, automotive infotainment systems, and industrial control panels where efficient and compact LCD power generation is critical. The board is supplied as a complete unit for immediate testing and analysis.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Voltage - Output | 15V |
| Voltage - Input | 4.5V ~ 5.5V |
| Current - Output | 600mA |
| Frequency - Switching | 1MHz |
| Regulator Topology | Boost |
| Board Type | Fully Populated |
| Utilized IC / Part | MAX17112 |
| Supplied Contents | Board(s) |
| Main Purpose | Special Purpose DC/DC, LCD Supply |
| Outputs and Type | 1, Non-Isolated |
