MAX17094EVKIT+
EVAL KIT FOR MAX17094Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Quality Control: Learn More

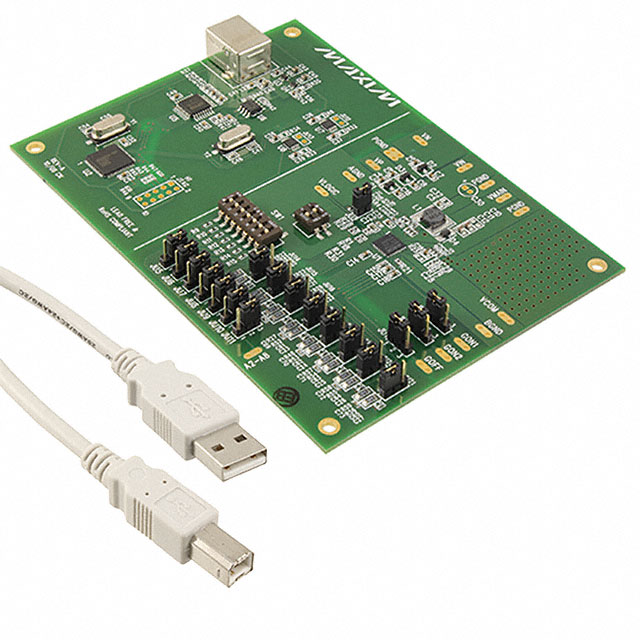

The Analog Devices Inc./Maxim Integrated MAX17094EVKIT- is a fully populated evaluation board designed to showcase the capabilities of the MAX17094, a special-purpose DC/DC controller for LCD power supply applications. This evaluation kit facilitates rapid prototyping and characterization of power management solutions requiring multiple, non-isolated outputs. The board supports input voltages ranging from 1.8V to 5.5V and features five distinct output voltages: 2.5V, 3.2V, 8V, 21.5V, and -6.5V, with corresponding output currents of 300mA, 250mA, 150mA, 30mA, and 30mA respectively. The underlying regulator topology incorporates boost and inverting configurations, enabling efficient generation of both positive and negative voltage rails. This evaluation platform is valuable for development in portable electronics, display systems, and other applications demanding precise and flexible DC/DC conversion.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Voltage - Output | 2.5V, 3.2V, 8V, 21.5V, -6.5V |
| Voltage - Input | 1.8V ~ 5.5V |
| Current - Output | 300mA, 250mA, 150mA, 30mA, 30mA |
| Frequency - Switching | - |
| Regulator Topology | Boost, Inverting |
| Board Type | Fully Populated |
| Utilized IC / Part | MAX17094 |
| Supplied Contents | Board(s) |
| Main Purpose | Special Purpose DC/DC, LCD Supply |
| Outputs and Type | 5, Non-Isolated |
