MAX17088EVKIT+
KIT EVAL FOR MAX17088Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Quality Control: Learn More

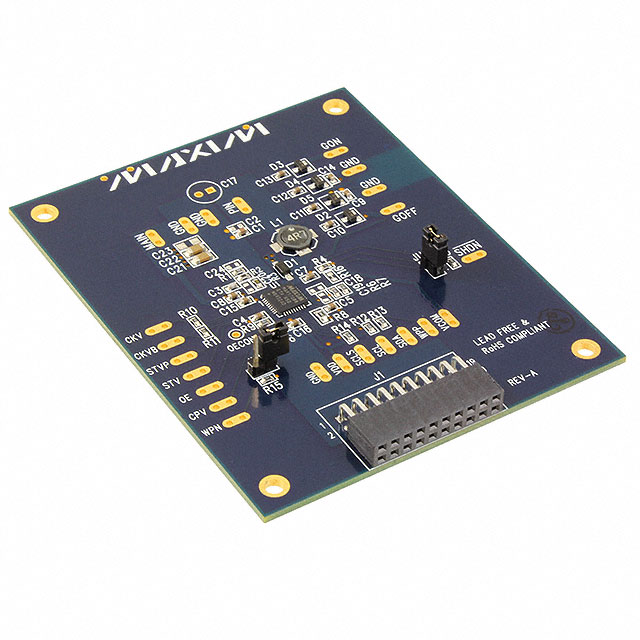

Analog Devices Inc./Maxim Integrated MAX17088EVKIT- is a fully populated evaluation board designed to demonstrate the capabilities of the MAX17088 special purpose DC/DC controller. This evaluation kit facilitates the assessment of a multi-output LCD power supply solution. The MAX17088, a boost regulator topology, is utilized here to generate four non-isolated outputs: 3.2V, 8V, 21V, and -13V, with corresponding output currents of 300mA, 150mA, 20mA, and 20mA respectively. The board operates with an input voltage range of 1.8V to 6V, and features a switching frequency of 1.2MHz, enabling compact solution design. This evaluation kit is particularly relevant for developers in the portable electronics and display driver industries requiring efficient and flexible power management for LCD panels.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Voltage - Output | 3.2V, 8V, 21V, -13V |
| Voltage - Input | 1.8V ~ 6V |
| Current - Output | 300mA, 150mA, 20mA, 20mA |
| Frequency - Switching | 1.2MHz |
| Regulator Topology | Boost |
| Board Type | Fully Populated |
| Utilized IC / Part | MAX17088 |
| Supplied Contents | Board(s) |
| Main Purpose | Special Purpose DC/DC, LCD Supply |
| Outputs and Type | 4, Non-Isolated |
