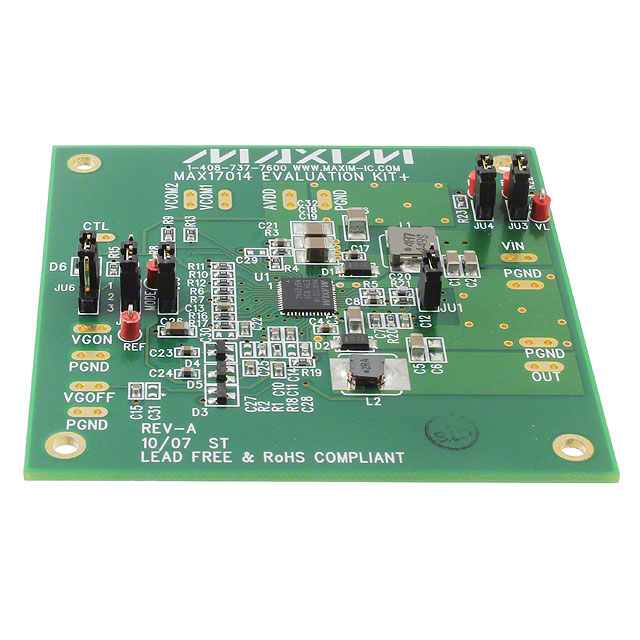

MAX17014EVKIT+

KIT EVAL FOR MAX17014

Manufacturer: Analog Devices Inc./Maxim Integrated

Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards

Quality Control: Learn More

This Analog Devices Inc./Maxim Integrated evaluation kit, part number MAX17014EVKIT-, provides a fully populated board for evaluating the MAX17014, a special purpose DC/DC controller designed for LCD supply applications. The device supports multiple non-isolated outputs with configurations including boost, buck, and inverting topologies. The evaluation board is equipped to demonstrate the MAX17014's capability to deliver outputs at 3.3V, 16V, 35V, and -6V, with current capabilities up to 2A, 1.5A, 100mA, and 50mA respectively. It operates with an input voltage range of 10.8V to 13.2V and features a switching frequency of 1.2MHz. This evaluation kit is suitable for applications in the automotive and consumer electronics sectors requiring sophisticated power management for display systems.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:
Technical Details:
PackagingBox
Voltage - Output3.3V, 16V, 35V, -6V
Voltage - Input10.8V ~ 13.2V
Current - Output2A, 1.5A, 100mA, 50mA
Frequency - Switching1.2MHz
Regulator TopologyBoost, Buck, Inverting
Board TypeFully Populated
Utilized IC / PartMAX17014
Supplied ContentsBoard(s)
Main PurposeSpecial Purpose DC/DC, LCD Supply
Outputs and Type4, Non-Isolated
