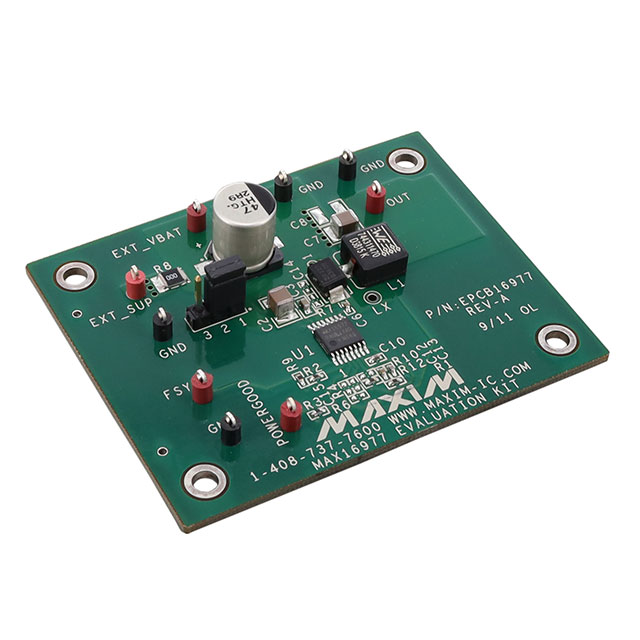

MAX16977EVKIT#

EVAL KIT MAX16977 (36V, 2A, 2.2M

Manufacturer: Analog Devices Inc./Maxim Integrated

Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards

Quality Control: Learn More

The Analog Devices Inc./Maxim Integrated MAX16977EVKIT- is a fully populated evaluation board designed to demonstrate the MAX16977 buck regulator. This evaluation kit facilitates the assessment of a high-performance DC/DC step-down converter capable of delivering up to 2A of output current. It operates with an input voltage range of 5V to 36V and provides a fixed 5V non-isolated output. The integrated MAX16977 features a switching frequency of 2.2MHz, enabling efficient power conversion and a compact solution footprint. This evaluation board is suitable for validating power supply designs in automotive, industrial, and consumer electronics applications where efficient voltage regulation is critical. The supplied contents include the evaluation board(s).

Additional Information

Series: -RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Box
Technical Details:
PackagingBox
Voltage - Output5V
Voltage - Input5V ~ 36V
Current - Output2A
Frequency - Switching2.2MHz
Regulator TopologyBuck
Board TypeFully Populated
Utilized IC / PartMAX16977
Supplied ContentsBoard(s)
Main PurposeDC/DC, Step Down
Outputs and Type1, Non-Isolated
